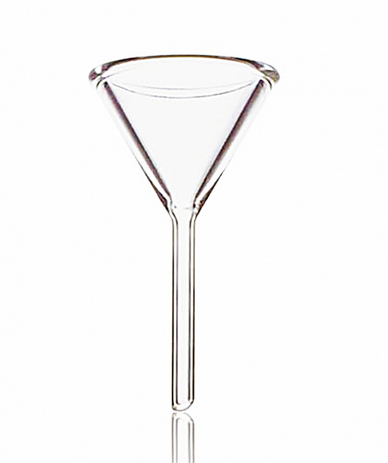

Funnel, 35 mm Top, Glass, Short Stem, 58 degree Angle, 28950-35

Item: 12-7680-47-EA

Description

DWK® Kimax® Funnel, 35 mm Top, Glass, Short Stem, 58 degree Angle, 28950-35

Features:

  • High resistance to chemical attack and mechanical and thermal shock
  • When filter paper is folded to form filtering cone forms precise 60° angle
  • Funnel with 60°, as are vast majority, then only effective filtering area is near tip
  • Exclusive KIMAX® 58° funnel promotes faster, more effective filtering because cone is suspended by its uppermost edge, leaving most of conical area for filtration
  • Designed from ASTM Specification E1095, Type I, Class A requirements
  • Manufactured from 33 expansion, low extractable borosilicate glass conforming to USP Type I and ASTM E438, Type I, Class A requirements





Specifications

Specifications
Capacity 8 mL
Material Borosilicate glass
Compliant/Standard ASTM Specification E1095, Type I, Class A, USP Type I and ASTM E438, Type I, Class A
Other Matching filter size: 55 mm diameter
Other Stem: 50 mm length x 6.5 mm outside diameter
Dimensions 35 mm top diameter
Manufacturer DWK
Model No 28950-35
