Description

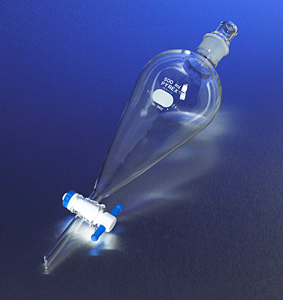

Corning® PYREX® 1 L Squibb Separatory Funnel, PTFE Product Standard Stopcock, Glass Standard Taper Stopper, 6402-1LFeatures:
Additional Sizes:
- Pear-shaped glass separatory funnel
- No. 4 Polytetrafluorethylene (PTFE) Product standard stopcock fits in micro-finish barrel; reduces freezing problems and grease contamination
- No. 27 Standard Taper, hollow glass stopper
| Capacity | 1000 mL |
| Funnel style | Squibb separatory |
| Stopcock style | Straight bore PTFE |
| Stopper style | Hollow glass |
| Top style | Standard Taper |
| PTFE stopcock plug size | No. 4 |
| Standard Taper stopper size | No. 27 |
| Height with stopper | 392 mm (approx) |
| Body outside diameter | 119 mm (approx) |
| Lower stem outside diameter | 10 mm (approx) |
| Length of stem below stopcock | 65 mm (approx) |
| Catalog No. | Mfr P/N | Description |
| 12-8178-71 | 6402-125 | 125 mL PYREX® Squibb Separatory Funnel w/ST Stopper |
| 12-8178-78 | 6402-250 | 250 mL PYREX® Squibb Separatory Funnel w/ST Stopper |
| 12-8178-81 | 6402-500 | 500 mL PYREX® Squibb Separatory Funnel w/ST Stopper |
| 12-8178-86 | 6402-1L | 1000 mL PYREX® Squibb Separatory Funnel w/ST Stopper |
| 12-8178-88 | 6402-2L | 2000 mL PYREX® Squibb Separatory Funnel w/ST Stopper |
| 12-8178-93 | 6402-6L | 6000 mL PYREX® Squibb Separatory Funnel w/ST Stopper |
Specifications
| Capacity | 1000 mL |
|---|---|
| Material | Borosilicate glass funnel and stopper, polytetrafluorethylene (PTFE) stopcock |
| Other | Stem length x diameter (below stopcock): 65 x 10 mm |
| Other | Stopcock size 4, Stopper size 27 |
| Dimensions | Height x diameter, outside: 392 x 119 mm |
| Manufacturer | Corning |
| Model No | 6402-1L |
