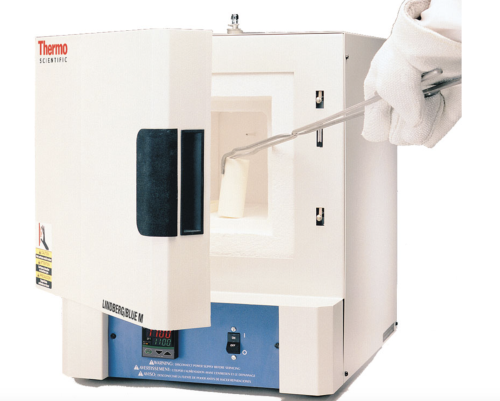

Furnace, Box, Lindberg/Blue M Moldatherm 1100 Degrees C, with Digital Control, 208/240 V, 9 in. H x 14 in. D x 9 in. W, Model BF51794C
Roll over image to zoom in Click on image to zoom
Furnace, Box, Lindberg/Blue M Moldatherm 1100 Degrees C, with Digital Control, 208/240 V, 9 in. H x 14 in. D x 9 in. W, Model BF51794C

Furnace, Box, Lindberg/Blue M Moldatherm 1100 Degrees C, with Digital Control, 208/240 V, 9 in. H x 14 in. D x 9 in. W, Model BF51794C

Item: 18-2406-04-EA
Request a Quote

Description

The Lindberg/Blue M product line offers a chamber box furnace suitable for a variety of industrial and laboratory applications. Advanced engineering and specialized construction techniques include variable density insulation, double shell cabinets, long-life heating elements and vertical, horizontal side swing or swing down doors.

These furnaces include unique insulation and heating element composites to minimize outer surface temperatures while maintaining uniform heat distribution within the chamber.

NOT AVAILABLE IN EUROPE.

   Product Detail

Features and Benefits
  • Controlled heat-up rate eliminates thermal shock to materials
  • Quick heat-up and cool-down rates
  • Energy efficient Moldatherm insulation with embedded heating elements
  • Unique double-wall construction minimizes exterior surface temperatures for operator safety and energy efficiency
  • Side-hinge door for convenient operation and full chamber access
  • Long-life Type K thermocouple
  • Air vent (1"" dia., top) and air inlet (.375"" dia., rear) for inert atmosphere exchange. Will experience some leakage at door
  • Removable and replaceable Moldatherm hearth plate supports load and prevents damage due to spillage
  • Main power on/off switch on control panel
  • Safety door switch to interrupt power to heating element when door is opened; protects heating element and minimizes exposure to end-user
Digital, Single Setpoint Controller
  • Microprocessor-based control with selectable self-tuning feature sets best control parameters for the thermal process. PID control (proportional, integral, derivative) prevents overshoot
  • Single segment, single setpoint, 1 ramp to setpoint
  • Adjustable high limit overtemperature protection
  • Simultaneous LED display of actual temperature vs. setpoint
  • May be configured to display temperature in either °C or °F
  • UL approval
Optional RS485 Digital Communications Port
  • RS485 Digital communications port available as an option. Allows controller to be connected to a PC for remote monitoring and control of the furnace. Up to 30 units can be connected to one PC. Please see page 35 for ordering information and additional options
