Description

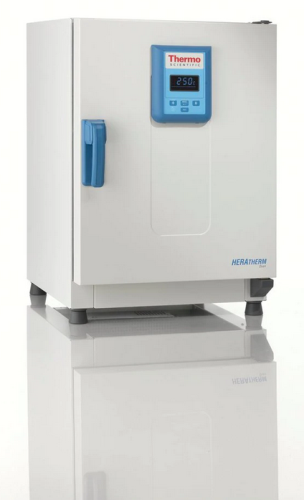

Heratherm General Protocol Ovens are ideally suited for routine applications, with sample safety in mind. The Heratherm General Protocol ovens line is perfect for routine day to day work, providing the ideal heating and drying solution for research, clinical or industrial needs.
Features:
- Operating temperatures from 50° to 250°C
- Automatic over-temperature alarm system to protect samples
- Low overall energy consumption
- Built in timer
- Excellent footprint/volume ratio
- Corrosion-resistant galvanized steel chambers with rounded corners for easy cleaning
- Large, easy to read vacuum fluorescent display
- Easy to use, microprocessor-controlled touch button operation
- Easy to accessdoors can be opened to over 180°C
Specifications:
| Convection Technology | Gravity Convection |
| Power | 208-240Vac, 60Hz, 3360Watts, 14Amp |
| Controller | Microprocessor control with vacuum fluorescent display |
| Temperature Range | 50° to 250°C |
| Temperature Uniformity | ±4°C |
| Temperature Stability at 150°C | ±0.4°C |
| Footprint | 0.47sq. m (5.1sq. ft.) |
| Max. Shelf Load | 25kg (55 lbs.) |
| Weight | 67kg (148lbs.) |
| Chamber volume | 176L (6.20cu.ft.) |
| Interior D x W x H | 23.2 x 17.2 x 26.8 |
| Exterior L x W x H | 29.1 x 25.2 x 36.2 |
| Shelves (Supplied/Max) | 2 / 19 |
Additional Products
|
Catalog No. |
Convection/Size/Temp Range |
|
91-2348-30 |
Gravity, 65L, 50° to 250°C |
|
91-2348-31 |
Gravity, 105L, 50° to 250°C |
|
91-2348-32 |
Gravity, 176L, 50° to 250°C |
|
91-2330-30 |
Gravity, 61L, 50° to 330°C |
|
91-2330-31 |
Gravity, 99L, 50° to 330°C |
|
91-2330-32 |
Gravity, 168L, 50° to 330°C |
|
91-2340-39 |
Mechanical, 710L, 50° to 330°C |
|
Mechanical, 66L, 50° to 250°C |
|
|
91-2340-41 |
Mechanical, 104L, 50° to 250°C |
|
91-2340-42 |
Mechanical, 179L, 50° to 250°C |
|
91-2340-60 |
Mechanical, 62L, 50° to 330°C |
|
91-2340-61 |
Mechanical, 97L, 50° to 330°C |
|
91-2340-62 |
Mechanical, 170L, 50° to 330°C |
