Description

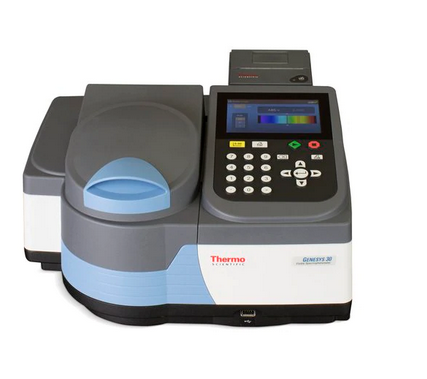

Thermo Scientific™ GENESYS™ 30 Visible Spectrophotometer, 840-277000
Features:
- Visible spectral range
- 5 in. high-definition 32 bit color display with rubberized push-button keypad
- Single cell measurment with removable, washable sample compartment liner
- Cell holders for standard cell types including test-tubes
- Optional VISIONlite PC software provides data however desired — digital or printed data
- Perform both basic and complex analyses for educational or industrial use
- Intuitive design allows students and teachers to focus on data and concepts rather than learning to use the instrument
- Credible results can be obtained in routine QA/QC applications easily by technicians of all level
- 2-year standard warranty — warranty will be extended 1 more year if instrument is registered with Thermo Scienitific™ within 6 months of purchase
Applications:
- Chemistry laboratories — curriculum topics for single wavelength, scanning, Beer's Law, colormetry/colormetric analysis, quantitative analysis
- Routine measurements
- Moderate throughput requirements
Specifications:
| Description | GENESYS™ 30 Visible Spectrophotometer |
| Detector Type | Silicon Photodiode |
| Display | 5-inch diagonal , 32 bit color display, 800 x 480 pixels |
| Drift | < 0.002 A/Hr (At 500 nm after 2 hour warmup; Typical < 0.004 A/Hr after 1 hour warmup) |
| Keypad | Tactile rubber 23 keys with numeric keypad |
| Lamp | Tungsten-Halogen (> 1000 hours typical service) |
| Languages | English, Spanish, German, French, Italian, Portuguese, Russian, Chinese, Japanese, Korean, Thai, Arabic |
| Noise | (RMS at 500 nm 60 consecutive measurements); </= 0.001 A @ 0 A; </= 0.001 A @ 1 A; </= 0.002 A @ 2 A |
| Optical Design | Single beam |
| Photometric Display | - 3 A to + 3 A; 0 to 200,000 % T; 0 to 9 999 999 C |
| Photometric Repeatability | ± 0.002 A @ 1 A (measured at 1.0 A at 546 nm) |
| Printer | Snap-on thermal printer (optional—purchase separately) |
| Spectral Bandwidth | 5 nm |
| Stray Light | < 0.1% T at 340 nm and 400 nm |
| Wavelength Repeatability | < 1 nm |
Specifications
| Range | 325 nm to 1100 nm wavelenght |
|---|---|
| Range | Wavelength scan speed up to 1200 nm/min |
| Range | Photometric -3 A to +3 A |
| Power | External AC to DC converter, Voltage and Frequency (Hz) are selected automatically, 100 to 250 V, 50 to 60 Hz |
| Accuracy | +\- 2 nm wavelength; +\-0.002A @ 0 to 0.3 A; 0.5% of ABS reading @ 0.301-2.5 A Photometric |
| Connectivity | USB-A Flash Memory and USB-B for Windows |
| Connectivity | USB, Ethernet or Wi-Fi |
| Dimensions | 35.5 cm length x 38.5 cm width x 19.5 cm height |
| Weight | 7.5 kg |
| Manufacturer | Thermo Scientific |
| Model No | 840-277000 |
| Warranty | 2 years + 1 year if registered within six months of purchase |
