Description

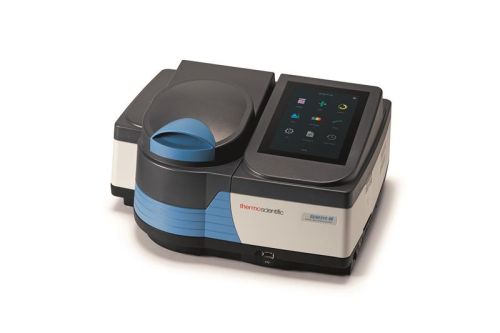

Thermo Scienitific™ GENESYS™ 40 Visible Spectrophotometer, 840-297000Features:
- Visible spectral range
- Dual-beam
- Single-cell configuration
- Meets all specifications for precise chemical measurements as well as critical quality control applications
- 7 in. high-resolution touchscreen user interface
- No PC required — controlled locally for speed and reliability
- Wi-Fi ready for networking capabilities
- Large, washable sample compartment with front access for easy use and maintenance
- Sloping top surface designed to shed spills
- Data resolutions from 0.2 to 5 nm
- 2-year standard warranty — warranty will be extended 1 more year if instrument is registered with Thermo Scienitific™ within 6 months of purchase
- Chemistry laboratories
- Routine measurements
- Moderate throughput requirements
| Baseline Flatness | ± 0.005 A | |
| Compartments | Accessible from top, front, or side;Able to accommodate up to 100 mm cells;Available accessory for up to 25 mm diameter x 150 mm height test tubes;Removable, washable sample compartment liner with magnetic hold-down and placement | |
| Connections | Single USB-A supports flash memory devices for method and data storageDuplex USB-A on side supports connection to a Windows™ computer running optional remote control software, keyboard, and mouse;Export data to network or PC via USB, Ethernet, or Wi-Fi | |
| Description | GENESYS™ 40 Visible Spectrophotometer | |
| Detector Type | Dual Silicon Photodiodes | |
| Dimensions, (L x W x H) | 35.5 x 38.5 x 19.5 cm | |
| Display | 7-inch color touchscreen, fixed, high definition, 800 x 1280 pixels | |
| Drift | < 0.0005 A/Hr (At 500 nm after 1 hour warmup) | |
| Keypad | Touchscreen | |
| Lamp | Tungsten-Halogen (> 1000 hours) | |
| Noise | (RMS at 500 nm 60 consecutive measurements)</= 0.00020 A @ 0 A @ 260 and 500 nm</= 0.00030 A @ 1 A @ 260 and 500 nm</= 0.00040 A @ 2 A @ 260 and 500 nm | |
| Optical Design | Dual beam | |
| Photometric | InstrumentAccuracy | ± 0.002 A @ 0.5 A± 0.004 A @ 1.0 A± 0.008 A @ 2.0 A |
| Display | - 3 A to + 5 A | |
| Range | - 3 A to + 3.5 A | |
| Repeatability | ± 0.001 A @ 1 A (measured at 1.0 A at 546 nm) | |
| Power Requirements | External AC to DC converter, Voltage and Frequency (Hz) are selected automatically, 100 to 240 V, 50 to 60 Hz | |
| Printer | Snap-on printer (optional—purchase separately) | |
| Resolution | 0.2 nm. 0.5 nm, 1 nm, 2 nm, 5 nm | |
| Spectral Bandwidth | 5 nm | |
| Stray Light | < 0.05% T at 340 nm and 400 nm | |
| Wavelength | Accuracy | ± 0.5 nm |
| Range | 325 nm to 1100 nm | |
| Repeatability | < ± 0.2 nm | |
| Scan Speed | Automatic — up to 1800 nm/min | |
| Weight | 7.5 kg | |
