Description

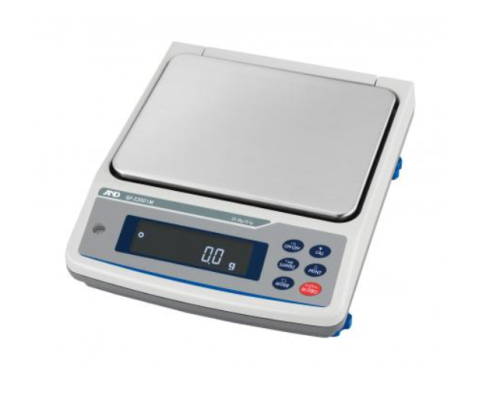

A&D Weighing® Precision Balance, 8.2 kg x 0.01 g with External Calibration, GF-8202M
Features:
- Super Hybrid Sensor provides fast measurements and accurate results
- Eliminate downtime due to load cell failure with integrated impact shock detection (ISD)
- Receive the best accuracy and precision with one-touch external cal
- Easy-to-read reverse backlit LCD provides clear and wide-angle visibility even in dimly–lit areas
- IP65 rated for protection against dust, spills and light washdown
- GLP/GMP/ISO compliant with time/date signatures and ID numbers
- Data Memory functions allows easy storage & export via RS232 or Quick USB with use of WinCT software communication tool
- Robust design and 5 year warranty prevent downtime
- Diverse selection of Internal (GX) & External (GF) cal models with a broad range of capacities & resolutions
Specifications:
| Stabilization time (typical when set to FAST) | Approximately 1.5 seconds |
| Sensitivity drift (10 to 30 °C/50 to 86 °F, when automatic self calibration is OFF) | ±2 ppm/°C |
| Accuracy immediately after internal calibration (for the GX M series)* | ±0.15 g |
| Operating environment | 5 to 40 °C (41 to 104 °F), 85%RH or less (no condensation) |
| Data memory | 200 weighing results + 50 calibration results (with upper/lower limit values for comparator mode, and 20 tare values timestamp), 50 unit masses for counting mode, 20 sets of |
| Display refresh rate | 5 times/second, 10 times/second, or 20 times/second |
| Units of measure** | g (gram), kg (kilo gram), oz (ounce), lb (pound), lb-oz (pound-ounce), ozt (troy ounce), ct (metric carat), mom (momme), dwt(pennyweight), gr (grain), pcs (counting mode), % (percent mode), SG (density mode), and a user-programmable unit |
| Counting mode Minimum Unit of Mass | 0.01 g |
| Counting Mode Number of Samples | 10, 25, 50 or 100 pieces |
| Percent mode Minimum 100% Reference Mass | 1 g |
| Percent mode % Readability | 0.01%, 0.1% or 1% (depends on the reference mass stored) |
| Communication interface | RS-232C and USB |
| Applicable calibration weight value | 2 kg, 3 kg, 4 kg, 5 kg, 6 kg, 7 kg, 8 kg |
| Weighing pan size | 270 × 210 mm |
| External dimensions | 300 (W) × 355 (D) × 111 (H) mm |
| Net weight | GX-M: Approx. 9.3 kg / GF-M: Approx. 8.3 kg |
| Dust and waterproof rating | IP65 |
| Power supply / consumption | AC adapter / approx. 30 VA |
| Standard accessories | Display cover, AC adapter, USB cable (1.8 m), Simple breeze break (for the GX/F-8202M, GX/F-8202MD, and GX/F-10202M only) |
*Under a stable environment: No rapid temperature/humidity change, vibration, draft, magnetism, static, etc., between 10 °C and 30 °C (50 °F and 86 °F). The mass of the internal weight may vary with age.
**One additional unit from tael (Singapore/HK jewelry/Taiwan), tola, or Newton can be added upon request. Grain is not available with the GX/F-32001MD.
Specifications
| Range | Readability 0.01 g |
|---|---|
| Range | Repeatability 0.01 g |
| Range | Linearity +/-0.03 g |
| Capacity | 8.2 kg x 0.01 g |
| Power | AC adapter / approx. 30 VA |
| Compliant/Standard | GLP/GMP/ISO |
| Operating Environment | 5 to 40 degrees C (41 to 104 degrees F), 85%RH or less (no condensation) |
| Connectivity | RS-232C and USB |
| Dimensions | 11.81 x 13.97 x 4.37 in |
| Weight | 8.3 kg |
| Manufacturer | A&D Weighing |
| Model No | GF-8202M |
| Warranty | 5 years |
