Description

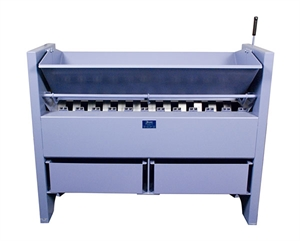

SP-0 Universal Splitter is built for large-volume bulk aggregate or raw coal samples. Other large samples with particle sizes up to 6in (152mm) can be accurately reduced with this rugged divider. Each split is evenly distributed to two pans on each side. All four pans are included. The optional SPA-450 Lift Cart is recommended for handling fully loaded pans.
| Applications | Large bulk aggregate samples up to 6in (152mm) or 400lb (182kg) or raw coal samples up to 300lb (136kg). |
| Maximum Particle Size | 6in (152mm) |
| Hopper Capacity ft³ (L) | 3.5 (99.1) |
| Numbers of Chute Bars | 48 |
| Chute Bar Width Size | 1in (25mm) |
| Chute Slope | 60° |
| Dimensions | 56x26x41in (1,422x660x1,041mm), WxDxH. |
| Estimated Shipping Weight lb (kg) | 475lbs (215kg) |
Specifications
| Manufacturer | Gilson Company |
|---|---|
| Model No | SP-0 |
