Description

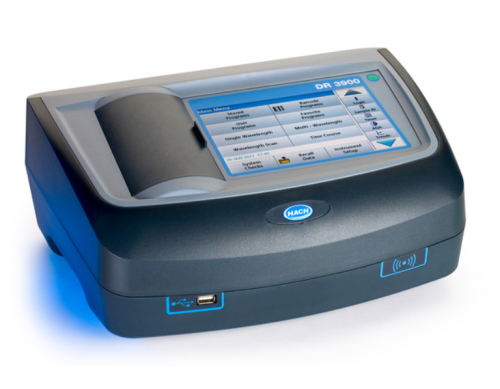

HACH Model DR3900 Laboratory VIS Spectrophotometer with RFID Technology, LPV440.99.00012
Features:
- DR3900 is benchtop visible spectrum (320 - 1100 nm), split beam spectrophotometer with over 220 pre-programmed methods optimized for laboratory water analysis
- With daily routine of water analysis in mind, DR3900 spectrophotometer is optimized for safe processes and accurate results
- Designed to deliver accurate results quickly with Hach's innovative TNTplus® and LCK reagents for fast preparation and easy execution
- Automatically recognizes Hach reagents, so there is no need to enter method numbers
- Simplifies water analysis with step-by-step guides which take users through testing procedures which helps ensure consistent and accurate results
- State-of-the-art Radio Frequency Identification (RFID) technology* allows for hands-free calibration updates, as it automatically recognizes lot, expiration and calibration curves associated with each Hach chemistry sample
- RFID also allows for traceability for each measurement
- Connects to Claros™, Hach’s innovative Water Intelligence System, enabling seamless connection and management of instruments, data, and process – anywhere, anytime resulting in greater confidence in data and improved efficiency in operations
- Optimized for safe processes and accurate results
- Large color touchscreen display allows easy setup and navigation
- RFID technology eliminates sample mix-ups and provides better sample traceability
- Built with 1 ethernet and 3 USB ports, enabling easy connects to computer
- Over 35 tests available including EPA compliant parameters such as ammonia, COD, chlorine and more
- Simple Preparation
- Comprehensive Documentation
- Fast Execution
- Customizable
- *RFID technology currently available only in US, and certain other countries (Check the datasheet for country availability)
Included:
- Spectrophotometer DR3900
- Adapter A for 1 in. round and 1 cm square cells
- Matched pair of 1 in. square glass sample cells
- Light shield
- Dust cover
- Printed basic user manual
- Benchtop power supply with 115 and 230V power cords
Specifications:
| Beam Height | 10 mm |
| Data Logger | 2000 measured values (Result, Date, Time, Sample ID, User ID) |
| Display | 7" TFT |
| Display Resolution | WVGA (800 pix x 480 pix) |
| Display Size | 7 inch (17.8 cm) |
| Display Type | Colored touch-screen |
| Enclosure Rating | IP30 |
| Light Source | Gas-filled Tungsten (visible) |
| Manual Languages | English, French (CDN), Spanish (SA), Portuguese (BR), Chinese, Japanese, Korean |
| Operating Modes | Transmittance (%), Absorbance and Concentration, Scanning |
| Optical System | Reference beam, spectral |
| Photometric Accuracy | 5 mAbs @ 0.0 - 0.5 Abs |
| Photometric Accuracy 2 | 1 % at 0.50 - 2.0 Abs |
| Photometric Linearity | < 0.5 % - 2 Abs |
| Photometric Linearity 2 | ≤ 0.01 % at >2 Abs with neutral glass at 546 nm |
| Photometric Measuring Range | ± 3.0 Abs (wavelength range 340 - 900 nm) |
| Power Requirements | 110 - 240 VAC, 50/60 Hz with external power supply |
| Power Supply | Benchtop Power Supply |
| Preprogrammed Methods | > 240 |
| Sample Cell Compatibility | Rectangular: 10, 50 mm, 1 inch; round: 13 mm, 16 mm, 1 inch |
| Scanning Speed | > 8 nm/S (in steps of 1 nm) |
| Source Lamp | Gas-filled Tungsten (visible) |
| Specific Technology | RFID for easy method update, sample ID and Certificate of Analysis |
| Spectral Bandwidth | 5 nm ± 1 nm |
| Standard Accessories | N/A |
| Storage Conditions | -30 to 60 °C, 80% relative humidity |
| Stray Light | < 0.1 % T at 340 nm with NaNO2 |
| User Interface Languages | Bulgarian, Chinese, Croatian, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese - Brasilian, Potuguese, Russian, Serbian, Slovakian, Slowenian, Spanish, Swedish, Turkish |
| User Programs | 100 |
| Wavelength Accuracy | ± 1.5 nm (wavelength range 340 - 900 nm) |
| Wavelength Calibration | Automatic |
| Wavelength Reproducibility | ± 0.1 nm |
| Wavelength Resolution | 1 nm |
| Wavelength Selection | Automatic, based on method selection |
Specifications
| Range | Photometric Measuring Range: +/- 3.0 Abs (wavelength range 340 - 900 nm) |
|---|---|
| Range | Wavelength Range: 320 - 1100 nm |
| Power | 110 - 240 V AC, 50/60 Hz with external power supply |
| Operating Environment | Temperature: 10 - 40 degrees C, Relative Humidity: 80 % |
| Connectivity | USB type A (2), USB type B, Ethernet, RFID module |
| Dimensions | (H x W x D): 151 mm x 350 mm x 255 mm |
| Weight | 4.2 kg |
| Manufacturer | HACH |
| Model No | LPV440.99.00012 |
| Warranty | 12 months |
