Description

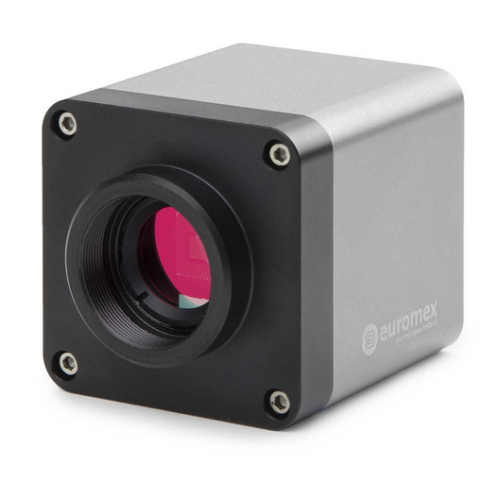

Globe Scientific® HD-Mini Camera, Color High Definition 2 mp High Speed Camera With 13 Inch HD Screen, 1280 X 1080P, Stand-Alone Usage With Standard 32 GB SD Card, HDMI Output, and Built-In Mouse-Driven Capture Software, EVC-3024-HDS
Features:
- Ideal solution for modern microscopy in industrial and laboratory applications where real time images are needed such as biological, metallurgical or stereo microscopy applications
- Images generated with this camera provide excellent color rendering at high frame rates and is user friendly
- When ready to operate, all camera settings are adjusted automatically which creates fast and flexible working condition
- Connect camera to high-definition HD screen, TV-HD or HD-beamer with an HDMI input and system is ready to go
- Mouse-driven embedded software of camera enables capturing images on integrated SD memory card
- Image and video capture
- White balance, Automatic/manual/ROI
- Auto/manual exposure
- Zoom in/out
- Horizontal/vertical flip
- Video freeze/cancel video freeze
- Grid
- Display/hide camera control panel
- Color adjustment (sharpness / de-noise / saturation / gamma / contrast)
- Wide array of measurement functions
- High definition 1080P color camera
- C-mount interface with c-mount lens (23.2) included
- HDMI and SD memory card
- 13-inch HD screen included
- Sensor: HDMI 2.0 Mega pixels CMOS high sensitive sensor (Sony) with 1/2.8 format
- Pixel size: 9 x 2.9 μm
- Pixels: 1920 x 1080 pixels (capture mode), 1920 x 1080 pixels (live mode), HDMI 60fps
- Color rendering (bits): 12 bits
- Signal Noise: 42 db, 3D Noise reduction function
- Dynamic: 69 db
- Sensitivity: 1300 Lux/sec
- Scan Mode: Progressive mode
Included:
- HDMI cable
- DC 12VDC/1A power supply
- 32GB SD Card
- USB mouse
- 0.5x c-mount adapter
- 23.2~30.0 / 30.5mm adapter rings
- 13 in. HD screen
Specifications
| Power | DC 12V/ 1A adapter |
|---|---|
| Operating Environment | Operation: -10~ 50 degrees Celsius, 30~80%RH, Storage: -20~ 60 degrees Celsius, 10~60%RH |
| Manufacturer | Globe Scientific |
| Model No | EVC-3024-HDS |
