Description

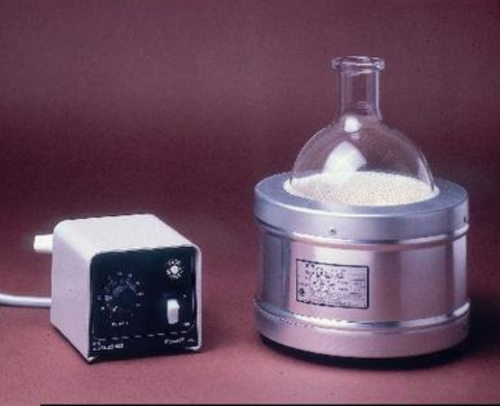

Glas Col® Heating Mantle with Power Controller for 1 L Round-Bottom Flask, 115 V, 100D TM108PL
Features:
- Heating mantles are preferred over Bunsen burners or hot plates for organic liquids
- Provide even heating (no hot spots) and maximum surface coverage for better temperature uniformity
- Series TM mantle package for round bottom flasks with PowerTrol power controller
- PowerTrol is solid state proportional voltage control that provides precise manual control of the output range which is adjustable from 5-100%
- Mantle has rigid housing which provides strength and durability while supporting weight of vessel
- Fabric interior to softly nest glass vessels to reduce chance of thermal shock and damage to glassware
- Withstands 400°C internal operating temperature
- Feet on smaller sizes designed to provide stability and promote cooler exterior temperatures
- All 115 volt units are CSA certified
- Includes 4 foot 3-wire cord with molded plug
Specifications:
| Material | Aluminum housing |
| Maximum Temperature | 400 °C |
| Height | 5.25 in. |
| Outside Diameter | 7.5 in. |
| Accomadated Flask Capacity | 1000 mL |
| Maximum Flask Diameter | 137 mm |
| Power | 115 V, 380 watts |
Specifications
| Range | Maximum Temperature: 400 degrees C |
|---|---|
| Range | Controller: 5 to 100% |
| Material | Mantle: aluminum housing |
| Power | 115 V, 380 watts |
| Compliant/Standard | CSA |
| Dimensions | Mantle: 5.25 in. height x 7.5 in. outside diameter |
| Manufacturer | Glas-Col |
| Model No | 100D TM108PL |
