Description

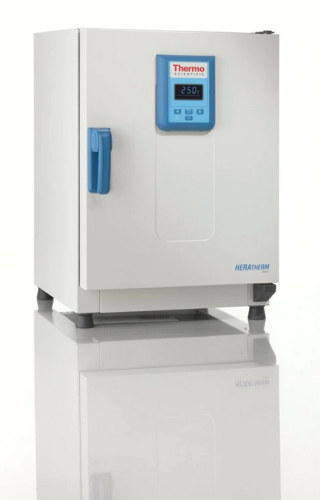

Thermo Scientific™ Heratherm™ General Protocol Mechanical Convection Oven, 104 L/3.75 cu.ft., 50 to 250 Degrees C, 208-240 V/60 Hz, 51028122
Features
- Operating temperatures from 50° to 250°C
- Automatic over-temperature alarm system to protect samples
- Low overall energy consumption
- Built in timer
- Excellent footprint/volume ratio
- Corrosion-resistant galvanized steel chambers with rounded corners for easy cleaning
- Large, easy to read vacuum fluorescent display
- Easy to use, microprocessor-controlled touch button operation
- Easy to accessdoors can be opened to over 180°C
Specifications:
|
Convection Technology |
Mechanical Convection |
| Power | 208-240 Vac, 60 Hz, 3360 Watts, 14 Amp |
|
Controller |
Microprocessor control with vacuum fluorescent display |
|
Temperature Range |
50° to 250°C |
|
Temperature Uniformity |
±2.5°C |
|
Temperature Stability at 150°C |
±0.3°C |
|
Footprint |
0.36sq. m (3.9sq. ft.) |
|
Max. Shelf Load |
25kg (55 lbs.) |
|
Weight |
53kg (117lbs.) |
|
Chamber volume |
104L (3.75cu.ft.) |
|
Interior D x W x H |
14.5 x 18.3 x 23.9 |
|
Exterior L x W x H |
22.2 x 25.2 x 32.3 |
|
Shelves (Supplied/Max) |
2 / 16 |
Additional Products
|
Catalog No. |
Convection/Size/Temp Range |
|
91-2348-30 |
Gravity, 65L, 50° to 250°C |
|
91-2348-31 |
Gravity, 105L, 50° to 250°C |
|
91-2348-32 |
Gravity, 176L, 50° to 250°C |
|
91-2330-30 |
Gravity, 61L, 50° to 330°C |
|
91-2330-31 |
Gravity, 99L, 50° to 330°C |
|
91-2330-32 |
Gravity, 168L, 50° to 330°C |
|
91-2340-39 |
Mechanical, 710L, 50° to 330°C |
|
91-2340-40 |
Mechanical, 66L, 50° to 250°C |
|
91-2340-41 |
Mechanical, 104L, 50° to 250°C |
|
91-2340-42 |
Mechanical, 179L, 50° to 250°C |
|
91-2340-60 |
Mechanical, 62L, 50° to 330°C |
|
91-2340-61 |
Mechanical, 97L, 50° to 330°C |
|
91-2340-62 |
Mechanical, 170L, 50° to 330°C |
