Description

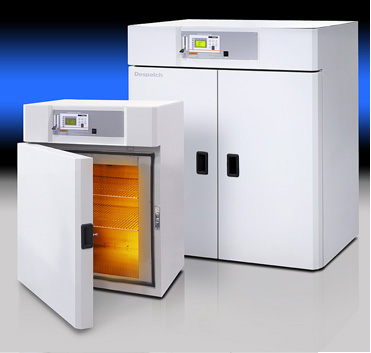

The LAC bench-top oven features horizontal recirculating airflow and exceptional temperature uniformity. The result is proven reliability in demanding production and laboratory applications, such as curing, drying, sterilizing, aging, and other process-critical procedures. The high-performance oven delivers temperatures up to 260C (500F).
Horizontal airflow for ultimate temperature uniformity - The LAC uses horizontal recirculating airflow to ensure uniform temperatures throughout the oven. A high-volume fan circulates air through perforated, stainless steel walls to create a constant horizontal airflow across all sections of the oven.
Controls are easy to use - Improved controls are easy to use for both simple and complex applications. Single and multiple- temperature applications can be started with the push of a button. Multiple temperature operations are controlled by up to eight programs, with eight ramp and soak segments in each program. Other features include a large, bright LED temperature display, a 32 character LCD status panel, and high-limit temperature protection.
Easy to clean and service - Cleaning is easy due to the scratch-resistant, baked enamel exterior, stainless steel interior, and smooth door surface. Servicing is easy due to convenient access to the heater and fan. The reversible door can be mounted to open from either the left or right, permitting easy access when the oven is placed in a corner.
|
Time to temperature with no load (40C to 100C) | 6 minutes |
|
Time to temperature with no load (40C to 200C) | 19 minutes |
|
Time to temperature with no load (40C to 260C) | 31 minutes |
|
Recovery time after door open for 1 minute (100C) | 1 minute |
|
Recovery time after door open for 1 minute (200C) | 6 minutes |
|
Recovery time after door open for 1 minute (260C) | 9 minutes |
|
Temperature uniformity |
+/- 1C at 100C, +/- 2C at 200C, +/- 2.5C at 260C |
|
Operating range with 20C ambient |
40C-260C (104F-500F) |
|
Control stability |
+/- 0.5C/5C change in ambient temperature. |
|
Repeatability |
+/- 0.5C |
|
Maximum load capacity |
300 lbs. (136kg) |
|
Maximum shelf capacity |
50 lbs. (23 kg) |
|
Exhaust capacity |
Adj. to 30 CFM (14.2 lps) |
|
Recirculating fan |
1/2 HP (2-1/4 HP) 600 CFM (282 lps) |
|
Approximate net weight |
360 lbs (164 kg) |
|
Approximate shipping weight |
480 lbs (217 kg) |
Specifications
| Manufacturer | Despatch |
|---|---|
| Model No | LAC2-12-9-1SP |
