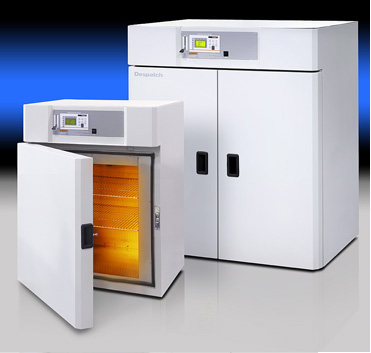

High-Performance Benchtop Oven, 6.6 cu.ft.(23.75 in. W x 20 in. D x 24 in. H), 240 Vac, 50-60 Hz, 11.7 Amps, 2.4 kw, Model LAC 1-67

Item: 91-2160-07-EA

Description

The LAC bench-top oven features horizontal recirculating airflow and exceptional temperature uniformity. The result is proven reliability in demanding production and laboratory applications, such as curing, drying, sterilizing, aging, and other process-critical procedures.  The high-performance oven delivers temperatures up to 260°C(500??ºF).

Horizontal airflow for ultimate temperature uniformity - The LAC uses horizontal recirculating airflow to ensure uniform temperatures throughout the oven. A high-volume fan circulates air through perforated, stainless steel walls to create a constant horizontal airflow across all sections of the oven.

Controls are easy to use - Improved controls are easy to use for both simple and complex applications. Single and multiple- temperature applications can be started with the push of a button. Multiple temperature operations are controlled by up to eight programs, with eight ramp and soak segments in each program.  Other features include a large, bright LED temperature display, a 32 character LCD status panel, and high-limit temperature protection.

Easy to clean and service - Cleaning is easy due to the scratch-resistant, baked enamel exterior, stainless steel interior, and smooth door surface. Servicing is easy due to convenient access to the heater and fan.  The reversible door can be mounted to open from either the left or right, permitting easy access when the oven is placed in a corner.

Superior quality - The LAC features a sturdy, welded, double-wall construction, three inches (7.6cm) of glass fiber insulation, and heavy-duty gaskets.  Each oven receives a thorough quality and performance test before it is shipped. Heating elements carry a five-year warranty. All models are UL/C-UL listed.

Standard Features

  • Horizontal recirculating airflow
  • Protocol Plus micro-processor control w/ real time clock makes over operation simple & flexible
  • Two levels of password security can limit operator access to program parameters
  • End-of-cycle and high-limit indicators
  • Stainless steel interior
  • UL and C-UL listed
  •
    Specifications


    Time to temperature with no load (40C to 100C)

    6 minutes

    Time to temperature with no load (40C to 200C)

    26 minutes

    Time to temperature with no load (40C to 260C)

    45 minutes

    Recovery time after door open for 1 minute (100C)

    1 minute

    Recovery time after door open for 1 minute (200C)

    3 minutes

    Recovery time after door open for 1 minute (260C)

    5 minutes

    Temperature uniformity

    +/- 1C at 100C, +/- 2C at 200C, +/- 2.5C at 260C

    Operating range with 20C ambient

    40C-260C (104F-500F)

    Control stability

    +/- 0.5C/5C change in ambient temperature.

    Repeatability

    +/- 0.5C

    Maximum load capacity

    250 lbs. (113kg)

    Maximum shelf capacity

    50 lbs. (23 kg)

    Exhaust capacity

    Adj. to 12 CFM (5.6 lps)

    Recirculating fan

    1/4 HP 300 CFM (141 lps)

    Approximate net weight

    255 lbs (115 kg)

    Approximate shipping weight

    360 lbs (163 kg)






    Specifications

    Specifications
    Manufacturer Despatch
    Model No LAC 1-67-9
