Description

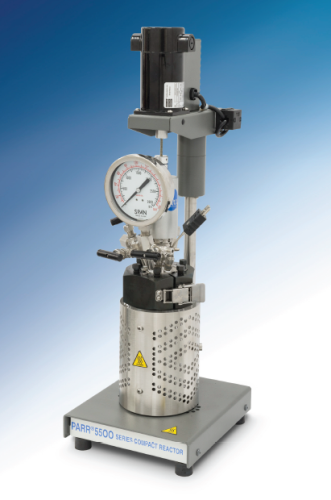

Parr Instruments® High Pressure Compact Laboratory (HPCL) Reactor, 115V, 300 mL, 5521-T-M-(SS)-115-VS-3000-CL-ABH-4848 [Representative Image]
Features:
- 300 mL stainless steel vessel (T316)
- PTFE Compression Gasket, 350 °C
- Magnetically coupled T316 stainless steel guide (180 nm) for stirrer
- 115 V power supply
- Variable speed motor 1/17 HP Variable Speed )stirring speeds adjustable from 0 to 1700 rpm)
- Pressure guage and rupture disc: 3000 psi / 200 bar
- Process controller managed by PID (Proportional-Integral-Derivate) algorithm for programming and controlling ramps, isotherms and thermal cycles
- Series 5500 HPCL Reactors are based on popular micro and mini, Series 4590 & 4560 Reactors
- There are several differences between these reactors and their original counterparts; primarily
- Smaller, more compact magnetic drive
- Smaller, more compact variable speed stirrer motor
- Larger support stand, overarm and motor have been eliminated
- Aluminum Block Heater also serves as the support stand
- Reaction vessels used in these HPCL reactors are identical to the ones furnished in Series 4590 Micro and Series 4560 Mini Reactors and use popular Parr split ring closure
- 300, 450, and 600 mL reactors provide an optional internal cooling loop in addition to these fittings
- Vessels are designed, built and can be certified to ASME Pressure Vessel Code, European Community P.E.D. and other appropriate local codes
- Electrical safety is certified by CSA and the EC-CE mark
- Aluminum block style heater with stainless steel heat shield provides excellent thermal uniformity as well as serving as vessel support providing a small footprint
Specifications:
| Approximate Volume | 300 mL |
| Maximum Pressure (MAWP) | 3000 psi (207 bar, 200 bar for CE/UKCA orders) |
| Maximum Temperature with PTFE Flat Gasket | 350 °C |
| Mounting Style | Moveable |
| Stand Type | Compact Bench Top |
| Closure | Split-Ring (6 Compression Bolts for Flat Gasket, no Compression Bolts for O-ring) |
| Valve Connections | 1/8″ NPT Male |
| Maximum Torque | 2.5 Inch-Pounds (0.28 Nm) |
| Impellers, 4 Blades | 1 (0.81″ diameter) |
| Stirrer Motor | 1/17 hp variable speed |
| Pressure Guage Size | 3.5 inches |
| Pressure Guage Range | 0-3000 psi (207 bar) |
| Temperature Measurement | Fixed Thermocouple |
| Cooling | Standard Single Loop |
| Bottom Drain Valve | N/A |
| Heater Style | Aluminum Block (External Cooling Optional) |
| Heater Power | 700 watts |
| Power | 115 / 230 VAC |
| Maximum Load, amps, 115 / 230 | 8 / 4 |
| Cylinder Dimensions, I.D. x Depth | 2.5 x 4.0 in. |
| Vessel Assembly Weight | 17 lbs |
| Cylinder Weight | 3.7 lbs |
| Reactor/Stand Dimensions without Controller W x D x H | 8.3 x 9.5 x 23 in. |
| Reactor/Stand Weight | 26 lbs |
| Spare Parts Kit | 5529SPK |
Specifications
| Compliant/Standard | CSA, EC-CE Mark |
|---|---|
| Manufacturer | Parr Instruments |
| Model No | 5521-T-M-(SS)-115-VS-3000-CL-ABH-4848 |
