Description

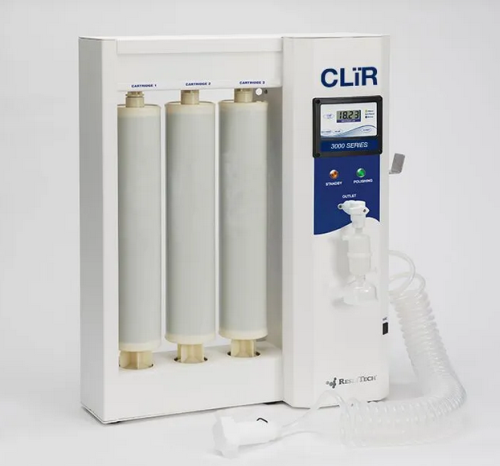

ResinTech® High Purity Water System, CLiR 3000 Series, Type 1 Water, 18.2 Megohm-cm, 2.0 to 4.0 lpm Feed Supply, CLS-3100
Features:
- Price Match Guarantee!
- Call sales for help in customization to your application and source water quality
- Provides 2.0 lpm of 18.2 Megohm-cm water and up to 4.0 lpm of direct feed supply
- Equipped with quite recirculation pump to maintain constant water purity
- Meets or exceeds ASTM Type 1 water specifications
- Compact footprint for bench or wall mounted
- Digital resistivity display—continuously monitored and temperature compensated
- Easy filter replacement—no tools required
- Cartridges are high capacity requiring fewer change-outs and lower operating costs
- Built-in timer to decrease wear on unit
- Built-in leak detection
- User-friendly interface
- Options available include (must be ordered at same time as unit and factory installed):
- Remote Dispensing Gun
- Upgraded 0.05 micron hollow fiber ultrafilter
- UV for bacteria and TOC reduction
- Secondary Direct Feed Side Port
- Wall bracket
- Reverse Osmosis Pretreatment
- Cartridges and final filter sold separately
- All media, cartridges and systems are lot-numbered and manufactured in state-of-the-art USA facilities under ISO standards
Influent Quality:
| Source | Reverse osmosis, DI or distillation (determination based on |
| Purity | < 20 microS/cm |
| Filtration | 0.2 micron |
| Free Chlorine | <0.05 ppm |
| Silica | <2 ppm |
| TOC | <50 ppb |
Effluent Quality:
| Purity | >18 Megohm-cm |
| Chlorides | <1 ppb |
| Sodium | <1 ppb |
| With 0.05 micron UF | < 0.03 EU |
| Bacterial Removal | < 10 CFU/mL for CLS-3100/CLS-3200; < 1 CFU / mL for CLS-3300/CLS-3400 |
| Endotoxin Removal | < 0.03 EU/mL for CLS-3300/CLS-3400 only |
Specifications
| Range | Resistivity: > 18 Megohm- cm |
|---|---|
| Range | Flow Rate: 2.0 / 4.0 lpm (with and without final ultrafilter) |
| Range | Filtration: 0.2 micron capsule |
| Range | Pressure: 20 PSIG minimum - 90 PSIG maximum |
| Power | 120 VAC/ 60 Hz at 1.0 amp |
| Compliant/Standard | Water quality meets or exceeds ASTM Type I water specifications |
| Operating Environment | Maximum temperature: 100 degrees F / 30 degrees C |
| Dimensions | Width x depth x height: 21 x 10.0 x 25.3 in. / 53 x 25 x 64 cm |
| Weight | 32 lbs / 14.5 kg ( 38 lbs when in operation) |
| Manufacturer | ResinTech Inc |
| Model No | CLS-3100 |
