Description

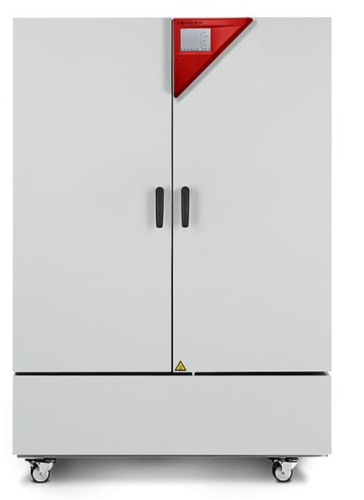

Binder® Humidity Test Chamber, 24.7 Cu Ft (700 L), 200 - 240 V (50/60 Hz), 9020-0325
Features:
- Safe thanks to climatic homogeneity that far exceeds accuracy required by ICH guidelines, even with fully loaded unit
- Reliable thanks to fail-safe operation without compromise
- Iinterior and long-life evaporator plate made entirely from stainless steel
- Smart – wide range of accessories makes it highly compatible for adaptation to specific customer requirements
- Economical thanks to maximum effective volume which allows for 30% larger load compared to competition
- Temperature range: 0 °C to +70 °C
- Humidity range: 10 % to 80 % RH
- APT.line™ preheating chamber technology
- Humidity regulation with capacitive humidity sensor and vapor humidification
- Intuitive touchscreen controller with time-segment and real-time programming
- BINDER Multi Management Software APT-COM™ Basic Edition
- Internal data logger, measured values can be read out in open format via USB
- Unit self-test for comprehensive status analysis
- Tight-sealing inner door made of safety glass (ESG)
- Avoidance of glass corrosion by special TIMELESS coating
- Inner chamber made of stainless steel
- 2 stainless steel racks
- Access port with silicone plug, 30 mm, left
- 4 stable castors, two with brakes, from 240 liters
- Class 3.1 independent temperature safety device (DIN 12880) with visual and audible temperature alarm
- Computer interface: Ethernet
- Door heating
Specifications:
| Option model | Standard |
| Order number | 9020-0325 |
| Max. heat compensation at 40 °C [W] | 600 |
| Temperature fluctuation [± K] | 0.1 |
| Temperature range [°C] | 0…70 |
| Temperature variation at 40 °C [± K] | 0.2 |
| Humidity fluctuation at 25 °C and 60 % RH | 1,5 ± % RH |
| Humidity fluctuation at 40 °C and 75 % RH | 1,5 ± % RH |
| Humidity range | 10…80 |
| Recovery time after 30 seconds door open at 25 °C and 60 % RH [min] | 16 |
| Recovery time after 30 seconds door open at 40 °C and 75 % RH [min] | 17 |
| Temperature fluctuation at 25 °C and 60 % RH [± K] | 0.1 |
| Temperature fluctuation at 40 °C and 75 % RH [± K] | 0.1 |
| Temperature range [°C] | 10…70 |
| Temperature variation at 25 °C and 60 % RH [± K] | 0.2 |
| Temperature variation at 40 °C and 75 % RH [± K] | 0.2 |
| Nominal power [kW] | 3.1 |
| Phase (Nominal voltage) | 1~ |
| Power frequency [Hz] | 50/60 |
| Rated Voltage [V] | 200…240 |
| Unit fuse [A] | 16 |
| Inner doors | 2 |
| Unit doors | 2 |
| Depth net [in] | 35.07 |
| Height net [in] | 75.8 |
| Width net [in] | 49.3 |
| Depth [in] | 22.69 |
| Height [in] | 49.3 |
| Width [in] | 38.34 |
| Interior volume [cu.ft.] | 24.7 |
| Load per rack [lbs] | 99 |
| Net weight of the unit (empty) [lbs] | 688 |
| Permitted load [lbs] | 331 |
| Wall clearance back [in] | 3.94 |
| Wall clearance sidewise [in] | 11.82 |
| Sound-pressure level [dB(A)] | 53 |
| Energy consumption at 40 °C and 75 % RH [Wh/h] | 620 |
| Number of shelves (std./max.) | 2/15 |
Specifications
| Range | Humidity Range: 10% to 80% RH |
|---|---|
| Range | Temperature Range: 0 degrees to 70 degrees C |
| Power | 200 - 240V, 1 PH, 50/60 Hz |
| Dimensions | 49.3 in. W x 75.8 in. H x 35.07 in. D |
| Weight | 681 lbs. |
| Manufacturer | Binder |
| Model No | 9020-0325 |
