Description

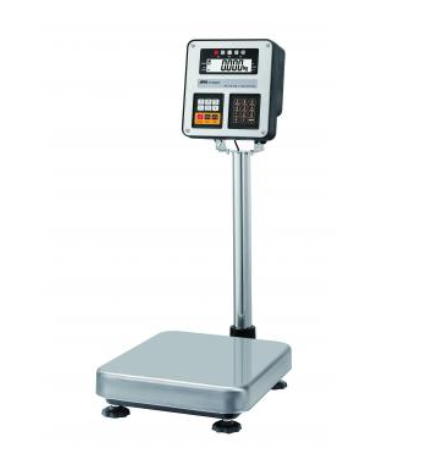

AND Weighing® Intrinsically Safe Bench Scale for Use in Hazardous Locations, 60 kg, HW-60KCEP
Features:
- Designed to weigh safely in potentially explosive atmospheres
- Intrinsically safe product design ensures highest level of safety and complies with latest hazardous area standards
- Fully configurable, large 5 segment lights enable fast, accurate checkweighing
- Auto-tare, accumulation and counting features add to benefits of truly versatile hazardous area scale
- Battery operation eliminates need to secure power from safe area behind safe barrier saving both time and money and gives flexibility to move the scale anywhere
- 1.5 second response time
- Large 25 mm character, LCD Display with alphanumeric keypad
- Multi-colored 5 step LED Comparator lights
- Key lock function prevents unwanted changes
- Host of built in functions including piece counting, auto-tare, and accumulation (M+)
- IP65 rated base for both dust and water
- SUS430 stainless steel weigh pan
Included:
- 2.5 mm hex wrench (1)
- 3 mm hex wrench (1)
- Instruction manual
Specifications:
| Counting Mode (Max. Countable Number) | 120,000 |
| Counting Mode (Number of Samples) | 5, 10, 20, 50 or 100 |
| Response Time *i | Within 1.5 seconds |
| Repeatability (std. deviation) | 0.01 kg |
| Linearity | ±0.01 kg |
| Sensitivity Drift (typical) | ±20 ppm / ?C (5 ?C to 35 ?C / 41 ?F to 95 ?F) |
| Display | 7 segment LCD (Character height: 25 mm) with backlight; 3-color, 5-step LED comparator lights |
| Display Refreshment Rate | 10 times / second |
| Battery Life (approx.) | 1,500 hours with LED and backlight OFF or 1,000 hours with LED and backlight ON |
| Weighing Pan Size | 330 × 424 mm / 13.0 x 16.7 in |
*i Time required for last digit to settle (stabilization mark will be lit one second after), which is subject to weighing environment, response characteristic setting and how target object is placed.
*ii Only DURACELL MN1300, ENERGIZER E95, or Panasonic LR20 (XI) can be used (but not mixed).
Specifications
| Capacity | 60 kg / 150 lb / 2400 oz x 0.005 kg / 0.01 lb / 0.2 oz resolution |
|---|---|
| Power | Four D-size, alkaline, 1.5 V batteries |
| Compliant/Standard | FM Class 1, Division 1, IP65 |
| Operating Environment | -10 ?C to 40 ?C / 14 ?F to 104 ?F, 85% Relative Humidity maximum (no condensation) |
| Dimensions | W x D x H: 330 × 585 × 776 mm / 13.0 x 23 x 30.6 in |
| Weight | 12 kg / 26.5 lb |
| Manufacturer | A&D Weighing |
| Model No | HW-60KCEP |
