Description

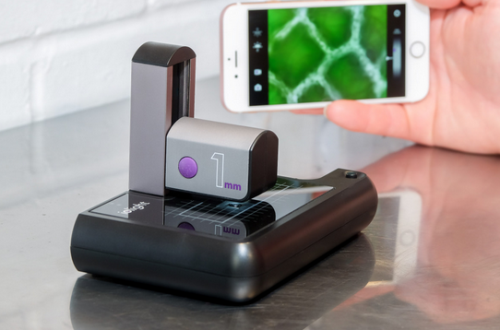

Accu-Scope® ioLight Portable Digital Microscope, 1 mm Field of View, IOL-100
Features:
- Fine focus slider in app or browser
- Creates its own WiFi for convenient Bluetooth® connection to smartphone or tablet (operates with app) or computer (operates with browser — Chrome or Opera recommended)
- Select top or bottom illumination and light intensity
- Digital phase contrast (web browser mode only)
- Single touch to save image or record video with 5MP camera
- Show or hide grid
- Advanced camera controls (web browser mode only)
- Ultra-portable, compact and rechargeable
- Digital microscopes that deliver live HD images directly to mobile device — ideal for field study and education
- Accepts standard glass microscope slides and coverslips
- Control microscope, view/capture/share images with mobile device app or internet browser
- Available with 1 mm or 2 mm field of view, with and without XY positioning control
- Optional hard-sided carrying case available
Included:
- ioLight Portable Digital Microscope
- USB charger, international model
- Protective pouch
- Users’ guide
- Certificate of conformity
Specifications:
| Field of View | 1 mm |
| Resolution | 1 µm |
| Magnification, Maximum | Approximately 400x |
| Working Distance | 1 mm |
| Illumination | LED, top and bottom, adjustable |
| Stage | Glass |
| Display (Not Included) | Smart phone, tablet or computer with WiFi |
| Image Sharing | Images and video are saved to photo gallery or download folder |
| Image Format | 5MP (2592 x 1944 pixels); JPEG, color |
| Video Format | MPEG-4; color; up to 1296 x 972 pixels, 10 fps |
| Weight (With Pouch) | 400 g |
| Dimensions | 160 mm x 101 mm x 107 mm (operating); 160 mm x 101 mm x 32 mm (folded) |
| Power | Integrated Li-ion rechargeable battery USB charger (supplied); Battery life: 5 hours (constant streaming) |
| Requirements | Mobile device running iOS 8.1 or Android 4.4 or higher or Computer with WiFi and Google Chrome, Safari, or Firefox (Microsoft Edge or Internet Explorer not recommended) |
Specifications
| Range | 1 mm Field of View |
|---|---|
| Range | Magnification: approximately 400x |
| Range | Working Distance: 1 mm |
| Power | Integrated Li-ion rechargeable battery, USB charger (supplied), Battery life: 5 hours (constant streaming) |
| Compliant/Standard | NDAA, CE, ISO 9001-2015, ISO 14001-2015, RoHS |
| Connectivity | WiFi, Bluetooth |
| Dimensions | 160 mm x 101 mm x 107 mm, operating; 160 mm x 101 mm x 32 mm, folded |
| Weight | 400 g with pouch |
| Manufacturer | Accu-Scope |
| Model No | IOL-100 |
