Description

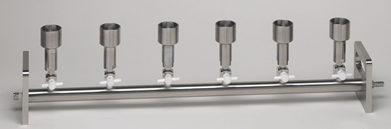

Advantec MFS® KM6NV Hydrolab Stainless Steel 6-Place Manifold with Standard Cups and 3-way Valves, 353330
Features:
- Autoclavable
- 2-way or 3-way valve available—use a 3-way valve when the manifold is used under closed conditions and must be vented to atmosphere without breaking the vacuum connection. 3-way valve vent is female luer slip, accepts standard disposable syringe filter or stainless steel syringe filter holder
- Valves have PTFE stopcock in a chrome plated brass body
- Standard cup accepts a #8 stopper to adapt microanalysis units and other devices
Specifications:
| Body and branch materials | Type 304 stainless steel |
| Valve materials | PTFE stopcock in chrome plated brass body |
| Outlet connection | 1/4 male NPT to hose barb fitting connects main manifold to 3/8 I.D. vacuum tubing |
| Standard cup connection | Accepts #8 and #8b stoppers |
| Dimensions, L x W x H | 28-1/2 x 4-3/4 x 8 (72.4 cm x 12 cm x 20.3 cm) |
| Distance between stations (center to center) | 4-3/4 (12 cm) |
| Weight | 16.9 lb. (7.7 kg) |
Other Models:
| 90-7466-56 | KM3N | 3 Place SS Unit with 2-way Valves |
| 90-7466-57 | KM3NV | 3 Place SS Unit with 3-way Valves |
| 90-7466-58 | KM6N | 6 Place SS Unit with 2-way Valves |
| 90-7466-59 | KM6NV | 6 Place SS Unit with 3-way Valves |
