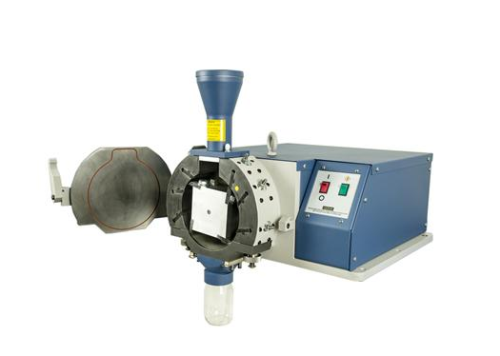

LabForce Wiley Mill No. 4 115 V

LabForce® Wiley® Mill, Model 4, 115 V

• Official Methods of Analysis AOAC 922
• Moving parts totally enclosed
• Single speed - 800 rpm at 60 Hz or 667 rpm at 50 Hz
• All steel construction
• 4 adjustable hard tool steel knives bolted to removable rotor work against 6 stationary knives bolted into frame avoids temperature increase, moisture loss, liquefaction, contamination
• Stationary knives independently adjustable and opposing knives are precisely adjusted for seharing clearance
• Fan effect of knives provides increased thoughput and quick clearing of chamber
• Grinding chamber has full access for cleaning with hinged, heavy steel plate door
• Clamping bolt with handwheel to seal door against mill face
• Neoprene shaft seal at rear of chamber prevents lubricant from seeping in while protecting ball bearings of rotor shaft from dust
• Knives' inlaid edges specially formulated tool steel tempered and hardened for durability and optimal cutting
• Knife body made of softer steel to absorb shocks and minimize breakage
• Stainless steel knives are also available for milling corrosive materials
• Hopper includes tight-fitting lid and sliding stainless steel plate at base to control feeding rate
• Sieves made of 316 stainless steel with curved round holes shaped to fit against top of delivery chute block to prevent samples from enter chute without passing through screen
• Chute block released by two handwheels for easy interchanging of sieves
• Adapter chutes slide into a spring-loaded holder beneath chute block to collect product in glass jar or stainless steel beaker
• Two chutes included with the mill can be interchanged without opening mill door
• Clearance below chute is 140 mm to base of bench models, permitting the use of standard receivers even if mill is placed back from edge of bench
• Jar Chute threaded to take standard Mason glass jars, up to 2 qt. (1.8 L) capacity permitting observation of finished product and convenience for sample storage
• Bag or sack can be tied on in place of the jar
• Beaker Chute is 105 mm i.d. x 146 mm deep, without spout
• Spring-loaded runners hold turned rim of beaker securely against adapter plate to prevent sample loss, while allowing easy removal of beaker
• Accepts 1,200 mL stainless steel beaker
• Drive unit mounted in enameled steel housing directly behind grinding chamber
• Motor is 1 hp, continuous duty, enclosed ball-bearing type, equipped with thermal overload cutout and needing no lubrication for years
• Safety switch prevents operation when the chamber is open
• Pulley drive uses a 16 mm V-belt

Included with Mill:

• Jar and beaker chutes
• Three sieves (1/2, 1 and 2 mm)
• One stainless steel beaker
• Three 1 pint (0.47 L) glass jars
• Set of wrenches

Applications:

• Plastics
• Animal feed
• Bones
• Cables
• Cardboard
• Electronic scrap
• Feed pellets
• Foils
• Food
• Leather
• Material mixtures
• Non-ferrous metals
• Paper
• Pharmaceutical products
• Refuse derived fuels
• Rubber
• Waste
• Wood

New Model Enhancements:

• Redesigned enclosure to reduce dust from entering the machine enclosure
• Sieves are now to be 316 stainless steel with optional certification of sieve hole size (must be requested at time of order)
• Added rotational mass for improved cutting capabilities
• Rigging eye hook included for ease of machine placement and relocation
• Sounded dampening foam included on inside of enclosure top designed to reduce machine/motor noise
• Redesigned rotating cutting head for ease of removal

Specifications:
