Description

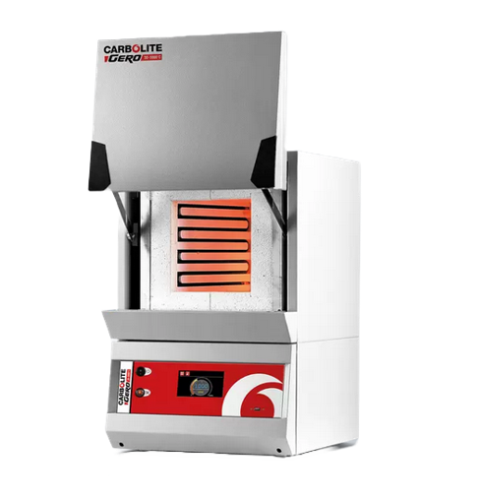

Carbolite-Gero® Laboratory Chamber Furnace, 208 V/3 Phase/60 Hz, CWF12/36
Features:
- 1100 °C, 1200 °C or 1300 °C maximum operating temperature depending on model
- 5, 13, 23, 36 or 65 litre chamber volumes
- Carbolite Gero 301 controller, with single ramp to set-point & process timer (CWF & CWF-B)
- 3216CC controller, with single ramp to set-point & process timer (CWF-BAL)
- Vertical lift door keeps heated surface away from the user
- Soft closing door on 5, 13, 21 & 23 litre models
- Delayed start / process timer function as standard
- Hard wearing alumina element carrier, furnace entrance and hearth
- Energy efficient low thermal mass insulation
- Free radiating wire wound elements for optimum uniformity
- Easy access to elements & controls simplifies maintenance & servicing
- CWF-B: Enhanced airflow from tall chimney & door vents for full combustion
- CWF-BAL: With integrated balance that runs independently of the furnace control system
- CWF-BAL: Software supplied with the balance may be used to monitor the balance reading via a computer
- CWF-BAL: Maximum capacity of balance is 3 kg with a resolution of 0.01 g (other capacities available)
Options (specify these at time of order)
- A range of sophisticated digital controllers, multisegment programmers and data loggers with digital communication options is available
- Over-temperature protection (recommended to protect valuable contents & for unattended operation)
- A range of metallic retorts to work with modified atmospheres up to 1150°C
- Bespoke specifications are available for AMS2750F (Nadcap) compliant applications
- CWF-BAL: 8 kg balance with a resolution of 0.1 g
Specifications:
| Heat-Up Time | 37 minutes |
| Temperature uniformity of ± 5 °C within H x W x D | 170 x 240 x 357 mm |
| Maximum Power (W) | 9000 W |
| Holding power | -- |
| Thermocouple Type | R |
Specifications
| Range | Maximum Temperature: 1200 degrees C, Continuous: 1100 degrees C |
|---|---|
| Capacity | 36 L |
| Power | 208 V/3 Phase/60 Hz |
| Other | External H x W x D: 810 x 690 x 780 mm door closed, height with door open: 1105 mm |
| Dimensions | Internal H x W x D: 250 x 320 x 450 mm |
| Weight | 100 kg |
| Manufacturer | Verder Scientific |
| Model No | CWF12/36-208V/3/60 |
