Description

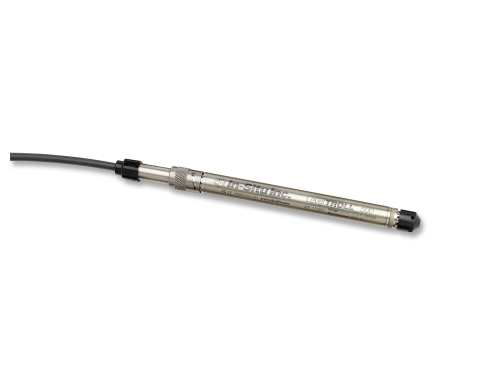

In-Situ Level TROLL 500 Data Logger, 15 PSIG, 11 m (35 ft.) , 0089010Features:
- Continuously logs water level, water pressure, and temperature
- Cost effective option for wide variety of projects
- Titanium construction provides durable, long-lasting performance in both fresh or saline groundwater environments
- Vented (gauged) pressure ranges up to 1153 ft (351 m)
- Sub-1 inch diameter
- Fully sealed, all titanium construction and sensors
- NIST calibration report
- Flexible native communication protocols (4-20 mA, SDI-12, RS-485) — can integrate with telemetry systems and HydroVu® Data services for real-time feedback on all water monitoring sites
- Customizable Rugged Twist-Lock Kevlar® woven cable suitable for use in high solvents (purchase separately)
- Data available immediately — Vented configuration does not require corrections for barometric pressure changes
- Solid titanium construction protects data and equipment even in harsh environments
- Simple set-up and control with integration to existing telemetry systems and Hydro Vu Data Services and 24/7 data and automatic event alerts
- Durable loggers last 10 + years reducing down-time in the field
- Level/Pressure/Temperature Data Logger
- Win-Situ® 5 Software
- Many options and configurations of the Level TROLL® 500 and other Level TROLL® models are available. Call to arrange a consultation with our staff today to find the best fit for your application!
| Operational Temperature Range ◊ | - 20 to 80 °C (- 4 to 176 °F) |
| Storage Temperature Range ◊ | - 40 to 80 °C (- 40 to 176 °F) |
| Calibrated Temperature Range ◊ | - 5 to 50 °C (23 to 122 °F) |
| Diameter | 1.83 cm (0.72 in.) |
| Length | 21.6 cm (8.5 in.) |
| Weight | 124 g (0.27 lb.) |
| Materials | Titanium body; Delrin® nose cone |
| Output options | Modbus/RS485; SDI-12, 4 to 20 mA |
| Battery Type & Life * | 3.6 V Lithium; 10 years or 2 M readings |
| External Power | 8 to 36 VDC |
| Memory | 2.0 MB |
| Data Records ♦ | 120,000 |
| Data Logs | 50 logs |
| Fastest Logging Rate | 2 per second |
| Fastest Output Rate | Modbus: 2 per secondSDI-12 & 4 to 20 mA: 1 per second |
| Log Types | Linear; Fast Linear; Event |
| Sensor Type/Material | Piezoresistive/Titanium |
| Available Vented (Gauged) Ranges | 5 psig: 3.5 m (11.5 ft.) — P/N 008900015 psig: 11 m (35 ft.) — P/N 008901030 psig: 21 m (69 ft.) — P/N 0089020100 psig: 70 m (231 ft.) — P/N 0089030300 psig: 210 m (692 ft.) — P/N 0089040500 psig: 351 m (1153 ft.) — P/N 0089050 |
| Burst Pressure | Maximum 2 x range; burst > 3 x range |
| Level & Pressure Accuracy (Full Scale) ♠ | ± 0.05% |
| Level & Pressure Long-Term Stability ♣ | < 0.1% Full Scale |
| Level & Pressure Resolution | ± 0.005% Full Scale or Better |
| Level & Pressure Units of Measure | Pressure: psi, kPa, bar, mbar, mm Hg, in Hg, cm H20in H20Level: in., ft., mm, cm, m |
| Temperature Sensor Material | Silicone |
| Temperature Sensor Accuracy | ± 0.1 °C |
| Temperature Sensor Resolution | 0.01 °C or better |
| Temperature Sensor Units of Measure | Celsius or Fahrenheit |
| Warranty † | 3 years |
◊ Temperature range for non-freezing liquids * Typical battery life when used within the factory-calibrated temperature range ♦ 1 Data record = date/time plus 2 parameters logged for a total of 360,000, 750,000, and 180,000 data points (No wrapping) ♠ Across factory-calibrated pressure and temperature ranges ♣ Includes linearity and hysteresis over 1 year † Up to 5-year (total) extended warranties available for all sensors
Delrin® is a registered trademark of EI du Pont de Nemours and CompanySpecifications are subject to change without notice
Specifications
| Application | Environmental monitoring |
|---|---|
| Manufacturer | In-Situ Inc |
| Model No | 0089010 |
