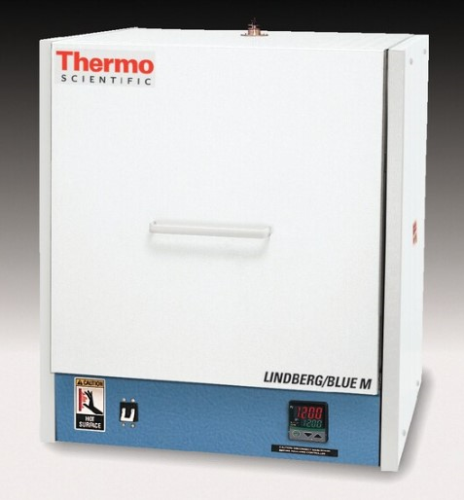

Lindberg/Blue M™ LGO Box Furnace with Flowmeter Option for Inert Atmosphere, Digital, Multiple-Program, Multiple-Segment Programmable Controller, 16.4 L, BF51732PFMC-1

Thermo Scientific™ Lindberg/Blue M™ LGO Box Furnace with Flowmeter Option for Inert Atmosphere, Digital, Multiple-Program, Multiple-Segment Programmable Controller, 16.4 L, BF51732PFMC-1

Features:

• Feature propretary light gauge overbend (LGO) heating elements
• Choice of side hinge or vertical lift door
• Air vent (1 in. diameter, top) and air inlet (0.375 in. diameter, rear) for inert atmosphere exchange (may experience some leakage at door)
• Self-tuning, digital instrumentation for precise temperature setpoint and display
• Platinel II™ thermocouple for long-term stability
• 0.6 cu. ft. models feature vertical lift door; 2 cu. ft. models feature horizontal side swing door, hot side facing away from operator for protection
• Microprocessor-based self-tuning PID control (proportional, integral, derivative) provides optimum thermal process, prevents overshoot
• Control panel designed for easy access and maintenance
• Main power ON/OFF switch on control panel
• Adjustable high-limit overtemperature protection
• Simultaneous LED display of actual temperature vs. setpoint
• Can be configured to display temperature in either degrees C or degrees F
• Safety door switch interrupts power to heating element when door is opened; protects heating elements and minimizes exposure to end-user
• Removable shelves for versatility
• Moldatherm™ hearthplate supports load and prevents damage due to spillage
• Available controllers:
  • Digital single segment, single setpoint, one ramp to setpoint
  • Digital single program with multiple segments for ramp (up and down) and dwell (timed hold) temperature control
  • Digital multiple programs and segments for ramp (up and down) and dwell (timed hold) temperature control (models with (P) suffix
• Adjustable digital overtemperature control (OTC)*, available on selected models with (B) suffix
  • Protects furnace and load in event of primary control circuit failure
  • Overrides main controller and shuts off power to furnace if high limit is reached
  • Manual reset required for safety
  • Operates via magnetic contacts through signal from independent thermocouple
• Flowmeter Option (FM suffix models) Inert atmosphere only
  • Gas flowmeter, adjustable, located on front control panel
  • Adjustable flowrate, range 1.0 to 10.0 cu. ft./hr. standard
  • Suitable for inert gas or airflow to chamber
  • Allows fresh air exchange for ashing applications Not suitable for combustible or volatile gases

Included:

• One two-part shelf (0.6 cu. ft. models have one shelf position at center position; 2.0 cu. ft. models have three shelf positions)

NOTE:

• Required power cord and hardwiring not included
• Optional RS485 Digital Communications Port allows controller to be connected to a PC for remote monitoring and control of the furnace; up to 30 units can be connected to one PC

*Specify Option B when ordering

Actual product may differ from image shown
