Description

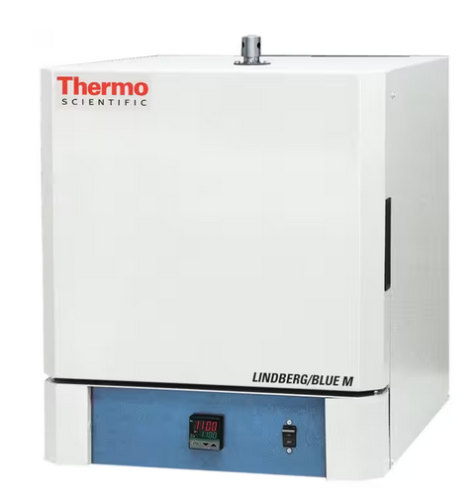

Thermo Scientific™ Lindberg/Blue M Moldatherm Box Furnace, 1.99 L, 120 V, 100 degrees C to 1100 degrees C, Multiple Segment/1 Programmable/OTP Temperature Control, BF51848A-1
Features:
- Minimizes outer surface temperatures while maintaining uniform heat distribution within chamber
- Include unique insulation and heating element composites,
- Available in several popular chamber sizes to meet most demanding laboratory applications
- Advanced engineering and specialized construction techniques include:
- Variable density insulation
- Double shell cabinets
- Long-life heating elements
- Horizontal side swing doors
- Selectable self-tuning feature sets best control parameters for the thermal process
- PID control (proportional, integral, derivative) prevents overshoot
- Main power ON/OFF switch on control panel
- Controlled heat-up rate eliminates thermal shock to materials
- Quick heat-up and cool-down rates
- Adjustable high-limit overtemperature protection
- Simultaneous LED display of actual temperature vs. setpoint
- Can be configured to display temperature in either °C or °F
- Unique double wall minimizes exterior surface temperatures for operator safety and energy efficiency
- Side-hinge door for convenient operation and full chamber access
- Long-life Type K thermocouple
- Air vent (1 in. dia., top) and air inlet (0.375 in. dia., rear) for inert atmosphere exchange; will experience some leakage at door
- Removable and replaceable Moldatherm hearth plate supports load and prevents damage due to spillage
- Energy-efficient Moldatherm insulation with embedded heating elements
- Safety door switch to interrupt power to heating element when door is opened; protects heating element and minimizes exposure to end-user
- Single program with multiple segments for ramp (up and down) and dwell (timed hold) temperature control
- 10′ power cord except 1.5 cu. ft. models which require customer-supplied power cord or hardwiring
Specifications:
| Type | Multisegment, Single Program, OTP |
| Temperature Control | Multiple Seg/1 Prog/OTP |
Specifications
| Range | Temperature: 100 degrees C to 1100 degrees C |
|---|---|
| Capacity | 1.99 L |
| Power | 120 V 50/60 Hz, 1800 W |
| Compliant/Standard | UL |
| Other | Interior D x W x H: 4 x 8 x 4 in. (10.2 x 20.3 x 10.2 cm) |
| Dimensions | Exterior L x W x H: 20 x 15 x 17.5 in. (50.8 x 38.1 x 44.4 cm) |
| Weight | 55 lb (25 kg) |
| Manufacturer | Thermo Scientific Blue M/Moldatherm |
| Model No | BF51848A-1 |
| Warranty | 1 year parts and labor |
