Description

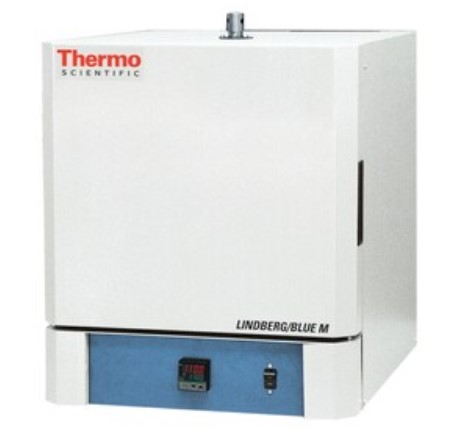

Thermo Scientific™ Lindberg/Blue M™ Moldatherm™ Box Furnace, Digital with Over-Temperature Protection, 100 C to 1100 C, Multiple Segment/Single Program Controller, 1.99 L, 120 V 50/60 Hz, BF51848A-1
Features:
- Microprocessor-based control
- Selectable self-tuning feature sets best control parameters for thermal process
- PID control (proportional, integral, derivative) prevents overshoot
- Main power ON/OFF switch on control panel
- Controlled heat-up rate eliminates thermal shock to materials
- Quick heat-up and cool-down rates
- Adjustable high-limit over-temperature protection
- Simultaneous LED display of actual temperature vs. setpoint
- Can be configured to display temperature in either degrees C or degrees F
- Unique double wall minimizes exterior surface temperatures for operator safety and energy efficiency—variable density insulation
- Side-hinge door for convenient operation and full chamber access
- Long-life Type K thermocouple
- Air vent (1 in. diameter, top) and air inlet (0.375 in. diameter, rear) for inert atmosphere exchange; will experience some leakage at door
- Removable and replaceable Moldatherm hearth plate supports load and prevents damage due to spillage
- Energy-efficient Moldatherm insulation with embedded heating elements
- Safety door switch to interrupt power to heating element when door is opened; protects heating element and minimizes exposure to end-user
- Controller types
- Digital, single segment, single setpoint, one ramp to setpoint
- Digital, single program with multiple segments for ramp (up and down) and dwell (timed hold) temperature control
- Optional RS-485 Digital Communications Port allows controller to be connected to a PC for remote monitoring and control of the furnace — connect up to 30 units to one PC
Included:
- 10 ft power cord except 1.5 cu. ft. models which require customer-supplied power cord or hardwiring
Specifications
| Range | Temperature: 100 degrees C to 1100 degrees C |
|---|---|
| Capacity | 1.99 L / 0.07 cu.ft. |
| Power | 120 V 50/60 Hz, 1800 W |
| Compliant/Standard | UL |
| Other | Interior D x W x H: 4 x 8 x 4 in. / 10.2 x 20.3 x 10.2 cm |
| Dimensions | Exterior L x W x H: 20 x 15 x 17.5 in. / 50.8 x 38.1 x 44.4 cm |
| Weight | 55 lbs / 25 kg |
| Manufacturer | Thermo Scientific |
| Model No | BF51848A-1 |
