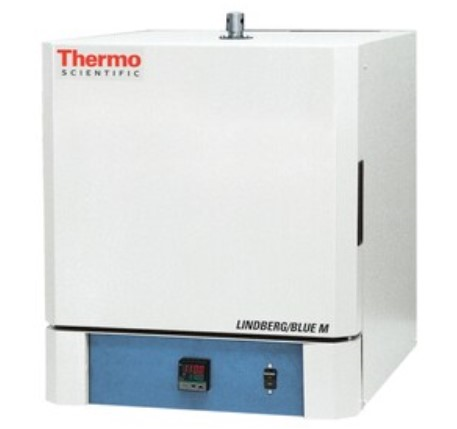

Lindberg/Blue M™ Moldatherm™ Box Furnace, Digital with Over-Temperature Protection, 100 C to 1100 C, Single Set Point Controller, 1.99 L, 208/240 V 50/60 Hz, BF51748C-1
Roll over image to zoom in Click on image to zoom
Lindberg/Blue M™ Moldatherm™ Box Furnace, Digital with Over-Temperature Protection, 100 C to 1100 C, Single Set Point Controller, 1.99 L, 208/240 V 50/60 Hz, BF51748C-1

Lindberg/Blue M™ Moldatherm™ Box Furnace, Digital with Over-Temperature Protection, 100 C to 1100 C, Single Set Point Controller, 1.99 L, 208/240 V 50/60 Hz, BF51748C-1

Item: 90-8545-64-EA
UOM: EA (1)
Price:
$4,360.00

Description

Thermo Scientific™ Lindberg/Blue M™ Moldatherm™ Box Furnace, Digital with Over-Temperature Protection, 100 C to 1100 C, Single Set Point Controller, 1.99 L, 208/240 V 50/60 Hz, BF51748C-1

Features:

  • Microprocessor-based control
  • Selectable self-tuning feature sets best control parameters for thermal process
  • PID control (proportional, integral, derivative) prevents overshoot
  • Main power ON/OFF switch on control panel
  • Controlled heat-up rate eliminates thermal shock to materials
  • Quick heat-up and cool-down rates
  • Adjustable high-limit over-temperature protection
  • Simultaneous LED display of actual temperature vs. setpoint
  • Can be configured to display temperature in either degrees C or degrees F
  • Unique double wall minimizes exterior surface temperatures for operator safety and energy efficiency—variable density insulation
  • Side-hinge door for convenient operation and full chamber access
  • Long-life Type K thermocouple
  • Air vent (1 in. diameter, top) and air inlet (0.375 in. diameter, rear) for inert atmosphere exchange; will experience some leakage at door
  • Removable and replaceable Moldatherm hearth plate supports load and prevents damage due to spillage
  • Energy-efficient Moldatherm insulation with embedded heating elements
  • Safety door switch to interrupt power to heating element when door is opened; protects heating element and minimizes exposure to end-user
  • Controller types
    • Digital, single segment, single setpoint, one ramp to setpoint
    • Digital, single program with multiple segments for ramp (up and down) and dwell (timed hold) temperature control
  • Optional RS-485 Digital Communications Port allows controller to be connected to a PC for remote monitoring and control of the furnace — connect up to 30 units to one PC

Included:

  • 10 ft power cord except 1.5 cu. ft. models which require customer-supplied power cord or hardwiring

Specifications

Range Temperature: 100 degrees C to 1100 degrees C
Capacity 1.99 L / 0.07 cu.ft.
Power 208/240 V 50/60 Hz, 1800 W
Compliant/Standard UL
Other Interior D x W x H: 4 x 8 x 4 in. / 10.2 x 20.3 x 10.2 cm
Dimensions Exterior L x W x H: 20 x 15 x 17.5 in. / 50.8 x 38.1 x 44.4 cm
Weight 55 lbs / 25 kg
Manufacturer Thermo Scientific
Model No BF51748C-1
