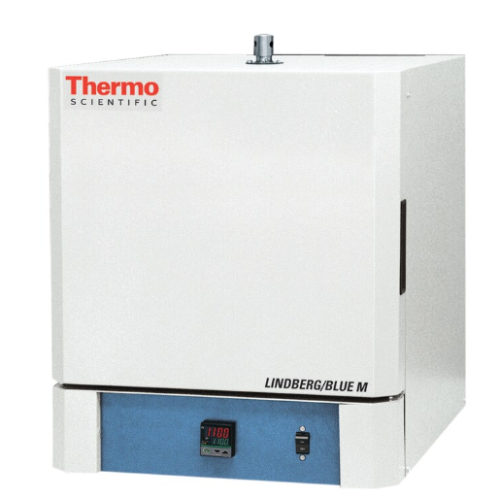

Lindberg/Blue M Moldatherm Digital Box Furnace, 1.5 cu. ft. /42.5 L, 1100 Degree C, Single Program with 8 Segments Controller, 208/240 V 50/60 Hz, Thermo Scientific, BF51728C-1

Thermo Scientific™ Lindberg/Blue M™ Moldatherm™ Box Furnace, Digital with Over-Temperature Protection, Single Set Point Controller, 42.5 L, 208/240 V 50/60 Hz, BF51728C-1

Features:

• Microprocessor-based control
• Selectable self-tuning feature sets best control parameters for thermal process
• PID control (proportional, integral, derivative) prevents overshoot
• Main power ON/OFF switch on control panel
• Controlled heat-up rate eliminates thermal shock to materials
• Quick heat-up and cool-down rates
• Adjustable high-limit over-temperature protection
• Simultaneous LED display of actual temperature vs. setpoint
• Can be configured to display temperature in either degrees C or degrees F
• Unique double wall minimizes exterior surface temperatures for operator safety and energy efficiency—variable density insulation
• Side-hinge door for convenient operation and full chamber access
• Long-life Type K thermocouple
• Air vent (1 in. diameter, top) and air inlet (0.375 in. diameter, rear) for inert atmosphere exchange; will experience some leakage at door
• Removable and replaceable Moldatherm hearth plate supports load and prevents damage due to spillage
• Energy-efficient Moldatherm insulation with embedded heating elements
• Safety door switch to interrupt power to heating element when door is opened; protects heating element and minimizes exposure to end-user
• Controller types
  • Digital, single segment, single setpoint, one ramp to setpoint
  • Digital, single program with multiple segments for ramp (up and down) and dwell (timed hold) temperature control
• Optional RS-485 Digital Communications Port allows controller to be connected to a PC for remote monitoring and control of the furnace — connect up to 30 units to one PC
