LSE Digital Dry Bath Heater, Four Block, 100 V, Corning, 6898-FB
Roll over image to zoom in Click on image to zoom
LSE Digital Dry Bath Heater, Four Block, 100 V, Corning, 6898-FB

LSE Digital Dry Bath Heater, Four Block, 100 V, Corning, 6898-FB

Item: 90-2296-51-EA
UOM: EA (1)
Price:
$894.76

Description

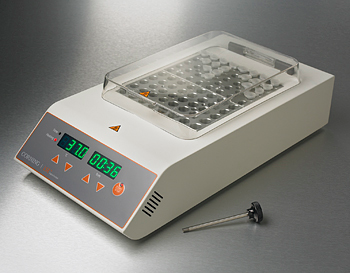

Corning® LSE™ Digital Dry Bath Heater, Four Block, 100 V, 6898-FB



Designed with a variety of block configurations and a broad temperature range up to 150 °C, the LSE™ Digital Dry Bath Heater are ideal for a wide spectrum of applications:  molecular biology, histology, clinical, environmental, and industrial.  They incorporated the best combinations of features such as, block capacity, dual displays, and external temperature probe that maximizes the confidence and efficiency needed for working with critical samples.



Features:



  • Available in single, dual, and four block capacity to maximize sample processing
  • Dual display allows for easy monitoring of temperature and time
  • USB connectivity enables traceability of data
  • Molded block chamber provides excellent temperature uniformity



Specifications:



Dimensions, W x D x H 8.3 x 16.3 x 4.7 in. (21 x 39 x 12 cm)
Weight 9.6 lbs (4.4 kg)
Block capacity 4 blocks
Temperature range Ambient + 5 °C to 150 °C
Temperature accuracy ± 0.3 °C
Temperature uniformity ± 0.2 °C (at 37 °C in block)
Temperature display resolution  0.1 °C 4 digit LED
Temperature controller Microprocessor - user calibratable
Control PI Microprocessor controller
Operating altitude Not to exceed 2,000 meters
Timer 1 to 99 hours 59 minutes or continuous in 1 minute increments
Display Digital, Dual
External temperature probe Available as option (90-2296-52)
Chamber construction Uniformly molded
Block lid Included
Interface USB unidirectional
Electrical requirements 100 V, 50/60 Hz, 3.73A, fuse 5AT



Other Models Available:



90-2296-40 6875-SB Single Block, 115V, 50/60Hz   90-2296-46 6887-DB Dual Block, 230V, 50/60Hz, UK Plug
90-2296-41 6876-SB Single Block, 230V, 50/60Hz, EU Plug   90-2296-47 6888-DB Dual Block, 100V,50/60Hz
90-2296-42 6877-SB Single Block, 230V,50/60Hz, UK Plug   90-2296-48 6895-FB Four Block, 115V, 50/60Hz
90-2296-43 6878-SB Single Block, 100V, 50/60Hz   90-2296-49 6896-FB Four Block, 230V, 50/60Hz, EU Plug
90-2296-44 6885-DB Dual Block, 115V,50/60Hz   90-2296-50 6897-FB Four Block, 230V,50/60 Hz, UK Plug
90-2296-45 6886-DB Dual Block, 230V,50/60Hz, EU Plug   90-2296-51 6898-FB Four Block, 100V,50/60HZ
