Description

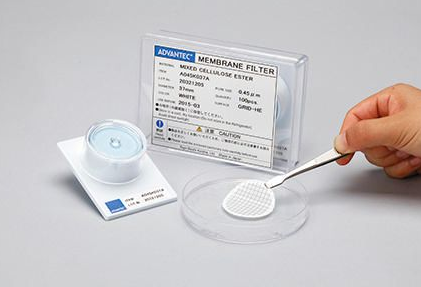

Advantec MFS™ Mixed Cellulose Ester (MCE) Membrane Filter 0.20 µm Pore Size, White, Plain, Nonsterile, 47 mm Diameter, 100/Pk, A020A047AFeatures:
¹ Bubble point is the minimum pressure required to force air through a membrane which has been prewet with water (0.1 µm membranes prewet with isopropanol)² Flow Rate indicates initial flow rate at 10 psi using a KGS 47 filter holder Water: using water prefiltered to 0.1 µm pore size Air: using prefiltered nitrogen at 10 psi³ Porosity refers to the percent open area
- Composition—mixed celluose esters including cellulose nitrate and cellulose acetate, also known as nitrocellulose
- High porosity—provides superior flow rates
- High protein binding—can be blocked by pretreatment or utilized in applications
- High purity—triton-free
- Autoclavable—withstands autoclaving temperatures up to 130 °C without adversely affecting bubble point, flow rate or micrbiological recovery
- Rapid wetting time—< 3 seconds to wet a 47 mm diameter disc with aqueous 1% methylene blue
- Filter sterilizing biological fluids
- Microbiology
- Comtamination analysis
- Air monitoring
- Can be transparentized to view collected particles—use compatible liquid (immersion oil, toluene)
| Classification | Mixed Cellulose Esters (MCE) Code A |
| Pore Size | 0.20 µm |
| Diameter | 47 mm |
| Color | White |
| Surface | Plain |
| Sterile | No |
| Bubble Point ¹ | >/= 0.37 MPa ( >/= 54.5 psi) |
| Flow Rate, Water ² | 17.5 mL/min/cm² |
| Flow Rate, Air ² | 2.4 L/min/cm² |
| Porosity ³ | 73 % |
| Thickness | 133 µm |
| Refractive Index | 1.50 |
| Maximum Operating Temperature | 130 °C |
| Ash Content | 2-5 µg/cm² |
