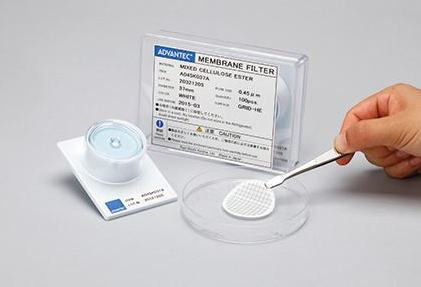

MCE Membrane Filter 0.45 um White Plain 90 mm Nonsterile 25/Pk, Advantec MFS, Inc, A045A090C
Roll over image to zoom in Click on image to zoom
MCE Membrane Filter 0.45 um White Plain 90 mm Nonsterile 25/Pk, Advantec MFS, Inc, A045A090C

MCE Membrane Filter 0.45 um White Plain 90 mm Nonsterile 25/Pk, Advantec MFS, Inc, A045A090C

Item: 90-7466-80-PK
UOM: PK (1)
Price:
$109.22

Description

Advantec MFS™ Mixed Cellulose Ester (MCE) Membrane Filter 0.45 µm Pore Size,  White, Plain, Nonsterile, 90 mm Diameter, 25/PK, A045A090CFeatures:
  • Composition—mixed celluose esters including cellulose nitrate and cellulose acetate, also known as nitrocellulose
  • High porosity—provides superior flow rates
  • High protein binding—can be blocked by pretreatment or utilized in applications
  • High purity—triton-free
  • Autoclavable—withstands autoclaving temperatures up to 130 °C without adversely affecting bubble point, flow rate or micrbiological recovery
  • Rapid wetting time—< 3 seconds to wet a 47 mm diameter disc with aqueous 1% methylene blue
Applications:
  • Filter sterilizing biological fluids
  • Microbiology
  • Contamination analysis
  • Air monitoring
  • Can be transparentized to view collected particles—use compatible liquid (immersion oil, toluene)
Specifications:
Classification Mixed Cellulose Esters (MCE) Code A
Pore Size 0.45 µm
Diameter 90 mm
Color White
Surface Plain
Sterile No
Bubble Point ¹ >/= 0.24 MPa ( >/= 35.0 psi)
Flow Rate, Water ²  45 mL/min/cm²
Flow Rate, Air ² 5.0 L/min/cm²
Porosity ³ 78 %
Thickness 145 µm
Refractive Index 1.50
Maximum Operating Temperature 130 °C
Ash Content 2-5 µg/cm²
¹ Bubble point is the minimum pressure required to force air through a membrane which has been prewet with water (0.1 µm membranes prewet with isopropanol)² Flow Rate indicates initial flow rate at 10 psi using a KGS 47 filter holder      Water: using water prefiltered to 0.1 µm pore size      Air: using prefiltered nitrogen at 10 psi³ Porosity refers to the percent open area Other MCE Membrane Filters Available:
Cat. No. Pore Size, µm Diameter, mm Surface Color Sterile Pad
90-7466-28 0.10 25 Plain White No No
90-7465-13 0.20 47 Plain White No No
90-7466-26 0.45 47 Plain White No No
90-7466-80 0.45 90 Plain White No No
MFS-A045A102C 0.45 102 Plain White No No
90-7466-29 0.45 142 Plain White No No
90-7466-07 0.45 25 Gridded White No No
90-7466-04 0.45 47 Gridded White Yes Yes
90-7466-06 0.45 47 Plain White Yes No
90-7468-10 0.45 47 Gridded Black No No
90-7466-09 0.45 47 Gridded Black Yes No
90-7466-05 0.45 47 Gridded White No Yes
90-7550-10 0.80 25 Gridded White No No
90-7466-10 0.80 47 Gridded Black No No
90-7550-11 5.0 25 Plain White No No
