Description

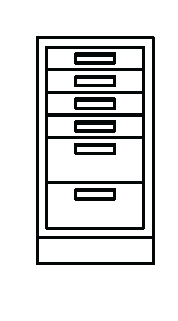

Prime Industries® Metal Standing-Height Base Cabinet with 4 Shallow-Depth Drawers at Top and 2 Deeper Depth Drawers at Bottom, 24 in. Wide, B3524-024
Features:
- Sink cabinets feature sink support channels (welded to sides) and open back for service access
- Standing Height: 35 in.; Standard depth metal casework, 22 in.
- All surfaces shall be painted or zinc plated (specify prior to quote request)
- Paint is a chemical resistant baked on epoxy powder – specific test data is available upon request
- Standard pulls are flush, extruded aluminum with capability to be a label holder style or aluminum bar style pull
- Full extension, ball bearing, plated drawer slides
- Drawer heads are "double pan" construction and sound deadened
- Back panels are removable
- Bottom panels are removable and panned up to contain spills
Metal Gauge for Various Components as Applicable:
| Aprons | 18 gauge |
| Back Panels | 20 gauge |
| Bottom Panels | 18 gauge |
| Drawer / Door Outer Panel | 20 gauge |
| Door Inner Panel | 20 gauge |
| Drawer Bodies | 20 gauge |
| Legs - 2 in. Square Tube | 18 gauge |
| Shelves | 18 gauge |
| Side Panels | 18 gauge |
| Table Frames | 16 gauge |
| K & V Shelf Clip | Hinge 13 gauge |
Specifications
| Dimensions | 35 in H x 24 in. W x 22 in. D |
|---|---|
| Manufacturer | Prime Industries |
| Model No | B3524-024 |
