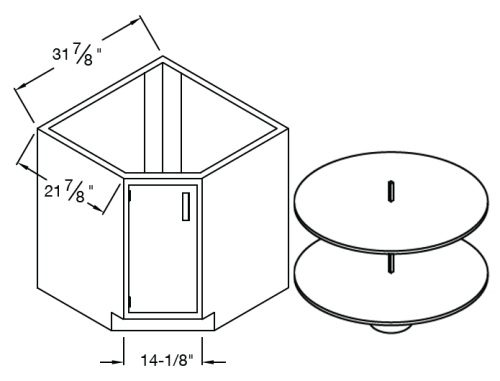

Metal Standing-Height Corner Base Cabinet with Two-Tier Lazy Susan and Left Hand Door, Front: 14-1/4 in., Back:  31-7/8 in., Sides:  21-7/8 in., Prime Industries, C3514-100L/LS35

Item: 80-1060-01-EA

Description

Prime Industries® Metal Standing-Height Corner Base Cabinet with Two-Tier Lazy Susan and Left Hand Door, Front: 14-1/4 in., Back:  31-7/8 in., Sides:  21-7/8 in., C3514-100L/LS35

Features:

  • Lazy Susan unit is an option that must be requested at time of order
  • Standing Height:  35 in.; Standard depth metal casework, 22 in.
  • All surfaces shall be painted or zinc plated (specify prior to quote request)
  • Paint is a chemical resistant baked on epoxy powder – specific test data is available upon request
  • Standard pulls are flush, extruded aluminum with capability to be a label holder style or aluminum bar style pull
  • Full extension, ball bearing, plated drawer slides
  • Drawer heads are "double pan" construction and sound deadened
  • Back panels are removable
  • Bottom panels are removable and panned up to contain spills

Metal Gauge for Various Components as Applicable:

Aprons 18 gauge
Back Panels 20 gauge
Bottom Panels 18 gauge
Drawer / Door Outer Panel 20 gauge
Door Inner Panel 20 gauge
Drawer Bodies 20 gauge
Legs - 2 in. Square Tube 18 gauge
Shelves 18 gauge
Side Panels 18 gauge
Table Frames 16 gauge
K & V Shelf Clip Hinge 13 gauge



Specifications

Specifications
Material Metal
Manufacturer Prime Industries
Model No C3514-100L/LS35
