Description

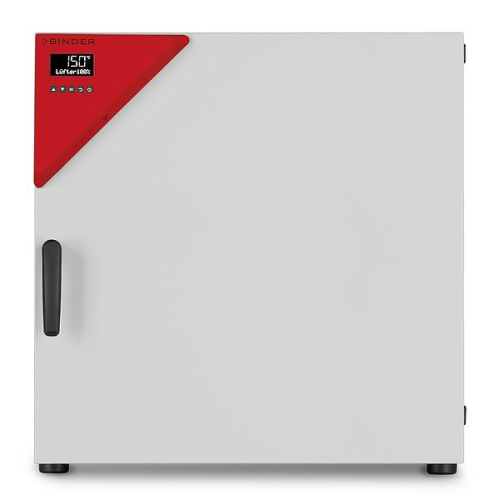

Binder™ Model FD115 Forced Convection Oven, 300 degree C Maximum, 4.1 cu.ft. (115 L), 120V, FD115UL-120
Features:
- Ideal for fast drying and sterilization applications
- Avantgarde.Line™ forced convection oven delivers high temperature accuracy — APT.line™ technology
- Homogenous temperature distribution, quick dynamics and powerful fan
- Ambient plus 10 °C to 300 °C
- Controller with LCD display
- Exhaust air flap controlled electromechanically
- Stackable
- Class 2 independent temperature safety device (DIN 12880) — equipped with visual temperature alarm
- Ergonomically designed handle
- Data recording via USB port
Includes:
- 2 — chrome-plated shelves
| Exterior Dimensions, D x H x W(Without Fittings and Connections) | 23.84 x 28.96 x 27.97 in. (605 x 735 x 710 mm) |
| Exterior Dimensions, D x H x W(With Fittings and Connections) | 26.61 x 28.82 x 28.09 in. (676 x 732 x 713.5 mm) |
| Interior Dimensions, D x H x W | 15.17 x 21.67 x 21.67 in. (385 x 550 x 550 mm) |
| Interior Volume | 4.1 cu. ft. (115 L) |
| Wall Clearance, Back | (160 mm) |
| Wall Clearance, Side | (100 mm) |
| Weight of Unit (Empty) | 86 lbs (50 kg) |
| Permitted Load, Total | 154 lbs (150 kg) |
| Permitted Load, Per Shelf | 66 lbs (30 kg) |
| Maximum Number of Shelves | 5 (2 provided with units — optional shelves must bepurchased separately) |
| Number of Doors | 1 |
| Temperature Range | Ambient plus 10 °C to 300 °C |
| Temperature Variation @ 150 °C | ± 1.7 °C |
| Temperature Fluctuation @ 150 °C | ± 0.3 °C |
| Heating-Up Time to 150 °C | 19 minutes |
| Recovery Time After 30 Seconds Door Open @ 150 °C | 5 minutes |
| Power Requirements | 120 V, 1 Phase, 60 Hz, 1.4 kW |
| Unit Fuse | 12.5 A |
| Energy Consumption @ 150 °C | 340 Wh/h |
| Sound-Pressure Level | 43 dB (A) |
Specifications
| Manufacturer | Binder |
|---|
