Description

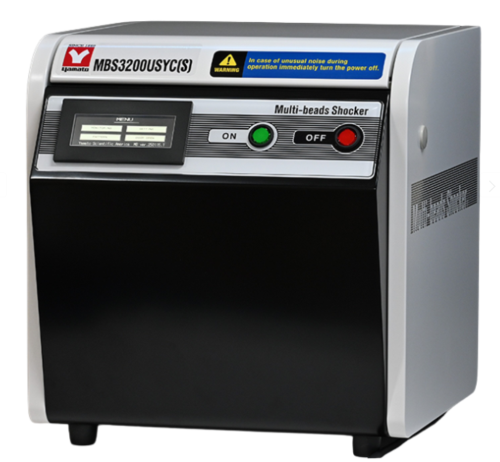

Yamato Scientific America® Multi-Beads Shocker Pulverizer/Homogenizer, with Water Chiller and Multi-Sample Holder, MBS-3200USYC(S)A
Features:
- Advanced unit that can process up to 24 samples simultaneously
- Utilizing 3D figure-eight motion principle, along with various tubes, rods and beads, it can pulverize samples from diverse fields within seconds
- Different program controls enhance analytical sensitivity and ensure consistent reproducibility
- Multiple samples can be pulverized simultaneously under identical conditions, and individual samples can be pulverized without need for balancing
- Equipped with selection of pulverizing temperature conditions such as freezing, low temperature, and room temperature
- Low liquid nitrogen usage during freeze pulverizing (0.2 L/sample)
- Variety of materials are available for sample tubes, including resin, titanium, stainless steel, alumina, agate, and tungsten carbide
- Cost-effective disposable plastic containers, available in sizes ranging from 2 mL to 100 mL, can be used as pulvering containers, saving both time and expense
- Benchtop unit with exceptionally quiet design, making it suitable for use in laboratories
Applications in Analytical, Geo and Materials Sciences:
- X-ray fluorescence analysis
- Preparation of materials for ICP-MS analysis
- Analysis of asbestos-containing building materials
- Soil nutrient analysis (collection of samples under 2 mm)
- Creation of nanoparticles from industrial samples from various materials including coal and other minerals, dyeing stuff (cold crushing), pharmaceutical and more
- Analysis of harmful substances contained in resins (formaldehyde, etc.)
- Analysis of RoHS regulations
- Isotope ratio analysis
- Zircon separation
- Development of next-generation battery material and other materials
- Reaction development
- Also ideal for biotechnological analyses
- Chiller is closed system circulator using water and anti-freeze solution (for 10 degrees C or lower)
- Temperature range: -20°C ~ 30°C (no heating function)
- Maximum flow rate: ~ 10 L/min
- Maximum head: ~ 5.7 m
- Temperature control accuracy: ±1.0 degrees C (≥ 0 degrees C), ±1.5 degrees C (< 0 degrees C)
- Cooling capacity (liquid temperature): ~450 W at 10 degrees C, ~330 W at -10 degrees C
- Water bath capacity: ~3.9 L (Liquid volume 3.5 L)
- Power source: Single phase AC 115 V 6.8 A with plug (CF-303Y) or Single phase AC 220 V 4 A no plug (CF-313Y)
- External dimensions (W x D x H): 205 x 396 x 535 mm,
(225 x 434 x 564 mm - including protrusions) - Weight: ~30kg
Included:
- MBS-3200USYC(S): Multi-Beads Shocker
- CF-303Y/313: Water Circulating Chiller
- YK-SHC2318(S)UY: Sample Holder with accessories
Specifications
| Range | Maximum rotation speed: 3000 rpm |
|---|---|
| Range | Timer, SV1: ON time 0-999 sec OFF time 0-999 sec cycle 999 |
| Range | Timer, SV2: ON time 0-999 sec OFF time 0-999 sec cycle 999 |
| Power | Single phase AC 110 to115 V 50/60 Hz 10 A (w/transformer) or Single phase AC 200 to 230 V 50/60 Hz 5 A |
| Operating Environment | Ambient 4 to 30 degrees C, RH: 20% to 60%, Atm Pressure: 70 to 100 kPa |
| Other | Multi-sample holder: 2 to 3 mL x 18 Model YK-SHC2318(S)UY |
| Dimensions | W x D x H: 422 x 468 x 451 mm |
| Weight | 33 kg |
| Manufacturer | Yamato Scientifc America |
| Model No | MBS-3200USYC(S)A |
