Description
| pH Range | -2.00 to 16.00 pH (Basic Mode) -2.000 to 16.000 pH (Standard Mode) +/-1000.0 mV for pH |
| pH Resolution | 0.01 pH, 0.001 pH 0.1 mV |
| pH Accuracy @ 25°C/77°F | ±0.01 pH, ±0.002 pH ±0.2 mV |
| pH Calibration Points | 5 – Extended mode 3 – Basic mode |
| pH Temperature Compensation | Automatic: -20.0 to 120.0°C; -4.0 to 248.0°F** |
| Electrode Condition | YES– Standard mode (pH only) |
| Electrode Response | YES– Standard mode (pH only) |
| Out of Calibration Range | YES– Standard mode (pH only) |
| pH Buffers | 1.68, 4.01 (3.00***), 6.86, 7.01, 9.18, 10.01, 12.45, and two custom buffers – Standard mode 4.01; 6.86; 7.01; 9.18; 10.01 - Basic mode |
| Temperature Range [°C/°F] | -20.0 to 120.0°C; -4.0 to 248.0°F |
| Temperature Resolution | 0.1°C; 0.1°F |
| Temperature Accuracy @ 25°C/77°F | ±0.5°C; ±1.0°F |
| °C/°F | YES |
| GLP | YES |
| Keyboard | 9 Keys (on/off, 8 dedicated) |
| Log Feature | Up to 1000 records organized in Manual Log on demand (Max. 200 logs), Manual log on Stability (Max. 200 logs), Interval logging with up to 100 lots (Max. 600 logs/lot) |
| Storage Interface | USB |
| PC Interface | Micro USB |
| Power Supply | 5 VDC |
| Dimensions | 202 x 140 x 12.7 mm (8” x 5.5” x .05”) |
| Weight | 250 grams (8.82 oz.) |
| * | with temperature compensation function disabled |
| ** | temperature limits will be reduced to actual probe/sensor limits |
| *** | pH 3.00 is only visible when using specific pH electrodes and will replace pH 4.01 buffer |
Supplied with:

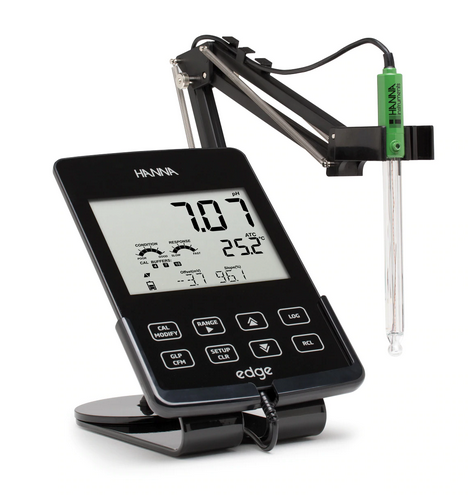

- Meter
- Benchtop docking station with electrode holder
- Wall-mount cradle
- USB cable
- HI 11310 glass-body, refillable pH electrode w/temperature sensor
- pH 4 buffer sachet (2)
- pH 7 buffer sachet (2)
- pH 10 buffer sachet (2)
- Electrode cleaning solution sachet (2)
- Electrode storage solution sachet (2)
- 5VDC power adapter
- Instruction manual
Other available kit configurations:
| 91-2599-56 | edge® pH Kit HI 2020-01 |
| 91-2599-57 | edge® EC (Conductivity) Kit HI 2030-01 |
| 91-2599-58 | edge® DO (Dissolved Oxygen) Kit HI 2040-01 |
Also available:
- Additional probes for Dissolved Oxygen and Conductivity can be purchased separately to expand the usefulness of this meter for your laboratory.
Brochure: 8.66 MB
