Description

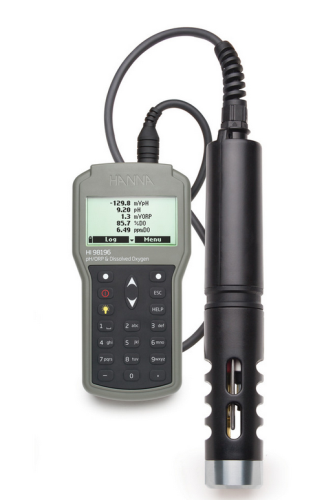

Hanna Instruments® Multiparameter pH/ORP/DO/Pressure/Temperature, Portable, Waterproof Meter, Probe with 10 meter / 32.8 ft Cable, HI98196/10
Features:
- Backlit Graphic LCD Display with on-screen help and capability to display up to nine parameters simultaneously
- Allows for use of virtual keys to provide for intuitive user interface
- Enclosed in IP67 rated waterproof casing and can withstand immersion in water at depth of 1 m for up to 30 minutes
- Pprobe features IP68 rating for continuous immersion in water
- HI7698196 probe features Quick Connect DIN connector that makes waterproof connection with meter
- Color-coded, field replaceable sensors with screw type connectors for quick and easy sensor port identification and changes
- Probe and meter automatically recognizes sensors that are connected — any ports not used on probe will not have parameter displayed or be configurable
- Integrated temperature sensor allows for automatic temperature compensation of pH and conductivity measurements
- Quick Calibration provides speedy, single point calibration for pH and conductivity
- Standard pH calibration options are available for calibrating up to three points from selection of five standard buffers and one custom buffer
- Conductivity calibration is single point from six standard selections or one custom standard
- HI98196 includes GLP feature that allows users to view calibration data and calibration expiration information at the touch of a key. Calibration data includes date, time, buffers/standards used for calibration, and slope characteristics.
- Allows users to store up to 45,000 continuous or log-on-demand samples with logging intervals from one second to three hours
- Intuitive rubber keypad has dedicated keys for power, backlight, up/down arrows, help, and alphanumeric characters
- Meter also features two virtual soft keys that navigate user through configuration of each parameter, meter setup and logging of data
- Interface is intuitive for any user's level of experience
- Contextual help is always available through dedicated 'HELP' key with clear tutorial messages and directions available on-screen to quickly and easily guide users through setup and calibration — help information displayed is relative to the setting/option being viewed.
- Logged data can be transferred to Window's compatible PC with included HI920015 micro USB cable and HI9298194 software
- Dsplay of meter has battery icon indicator to show remaining power — uses four 1.5 V AA batteries that provide up to 360 hours of battery life
- Rugged thermoformed carrying case for meter, probe, and all accessories designed to provide storage, protection and years of use
Specifications
| Range | pH: 0.00 to 14.00 pH / +/- 600.0 mV, resolution: 0.01 pH / 0.1 mV |
|---|---|
| Range | Dissolved Oxygen: 0 to 500 % or 0 to 50.00 ppm (mg/L), resolution: 0.1% or 0.01 ppm (mg/L) |
| Range | Temperature: -5.00 to 55.00 degrees C / 23.00 to 131 degrees F/ 268.15 to 328.15 K |
| Range | ORP: +/-2000 mV, resolution 0.1 mV |
| Power | 4 x 1.5V AA batteries |
| Compliant/Standard | IP67 meter, IP68 probe |
| Connectivity | DIN connector |
| Connectivity | USB Connection |
| Dimensions | 185 x 93 x 35.2 mm / 7.3 x 3.6 x 1.4 in. |
| Weight | 400 g / 14.2 oz |
| Manufacturer | Hanna Instruments |
| Model No | HI98196/10 |
