Description

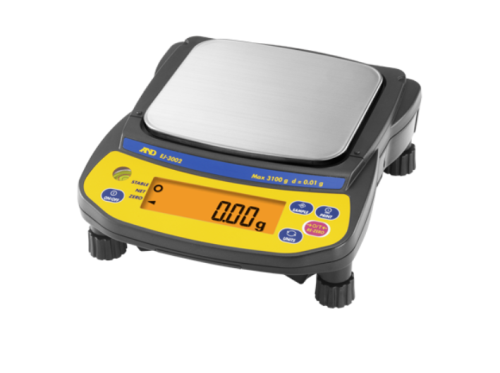

A&D Weighing® Newton® EJ Series Portable Balance, 3100 g x 0.01 g with External Calibration, EJ-3002
Features:
- SG weighing technology offers performance and wide range but keeps it lightweight & affordable
- Quick 5-button operation to access unit toggle, zero/tare, print and set pcs samples
- User friendly indicators: Stability icon, Zero & Net icon, front level bubble, 16MM Character backlit LCD, battery life icon
- Easy to clean stainless steel weigh pan, ABS plastic housing and security slot for lock down capability
- AC & battery operation versatility for variety of settings but lends for easy pick-up, re-locate and storage options
- Quick, reliable results in any given unpredictable environment or sample with stability honing feature
- Smartly optimize counting accuracy with ACAI that auto improve accuracy throughout counting procedures
- Display hold features
- Reduce risk of procedural or transfer errors in sample preparation steps with M+ function
- External Calibration switch and gravity acceleration correction keeps you accurate and precise
- Quick interface plug-ins to address all RS-232C and USB (unidirectional) communication needs (Optional)
- Antistatic breeze break (draft shield) not only protects but mitigates draft (Optional)
- Specialty applications: underhook weighing and density determination kit (Optional)
Specifications:
| Readability | 0.01 g |
| Repeatability | 0.03 g |
| Linearity | ±0.03 |
| Sensitivity Drift | ±20 ppm/degree C (10 to 30 degrees C/50 to 86 degrees F) |
| Calibration | External (3000 g) |
| Stabilization Time | ~5 seconds |
| Weighing Pan Dimensions | 127 x 140 mm |
| Applications | Counting with Automatic Counting Accuracy Improvement (ACAI), Percent, Display Hold, Accumulation M+, Gravity Acceleration Correction |
| Weighing Units | g, oz, lb, ozt, ct, mom, dwt, grain, N, pcs |
| Connectivity | RS-232C interface, Quick USB interface (optional), LAN – Ethernet interface with WinCT-Plus software (optional) |
Specifications
| Range | Stabilization time: approximately 5 seconds |
|---|---|
| Range | Counting mode: 5, 10, 25, 50 or 100 pieces minimum weight 0.01 g |
| Range | Percent mode: minimum 100% weight: 1 g, minimum % display: 0.01 g |
| Capacity | 3100 g x 0.01 g |
| Power | AC adapter or 4 AA batteries |
| Accuracy | Repeatability: 0.03 g, Linearity: +/-0.03 g |
| Operating Environment | Temperature: 10 to 30 degrees C/50 to 86 degrees F, Relative Humidity: 85% or less (no condensation |
| Connectivity | Output: RS-232C interface, Quick USB interface (optional), LAN - Ethernet interface with WinCT-Plus software (optional) |
| Other | Pan size: 127 x 140 mm / 5 x 5.5 in. |
| Other | Calibration weight: external, 3000 g |
| Dimensions | 190 x 211 x 82 mm / 7.48 x 8.31 x 3.3 in |
| Weight | 1490 g |
| Manufacturer | A&D Weighing |
| Model No | EJ-3002 |
| Warranty | 5 years |
