Description

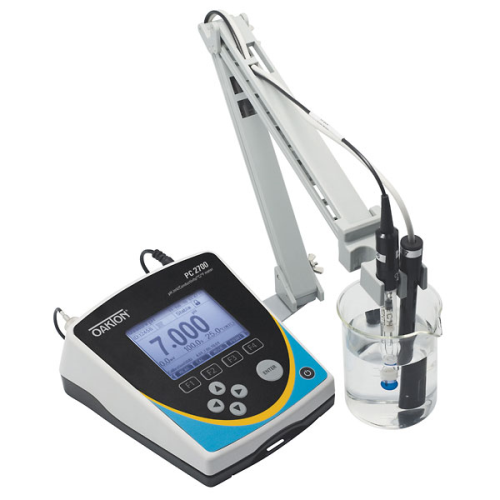

Cole-Parmer® Oakton® PC 2700 Multiparameter Benchtop pH/Conductivity/ISE Meter with pH Electrode, Conductivity/Temperature Probe and Stand, WD-35413-00 PC 2700 measures pH, ORP, ion, conductivity, total dissolved solids (TDS), salinity, resistivity, and temperature
Features:
- Measures salinity from 0.0 to 80 ppt and resistivity from 2.000 ohms to 20.0 Mohms
- Brilliant backlit display with dynamic stability indication
- Up to 500 point memory with date-time stamp for GLP
- Output data to printer or PC
- Accepts either 2-cell or 4-cell electrodes
- Features auto-standardization, auto-calibration, and autoranging
- Calibration due alarm with password protection for setup and calibration
- Temperature coefficient of 0.000 to 10.000%
- Automatic or manual temperature compensation
- 3-year Warranty
The PC 2700 meter offers a new compact design that is over 40% smaller than other benchtop meters. The large display is easy to read even at a distance and features stability indication. All measurements include temperature display. The meter includes auto-buffer recognition for both USA and NIST pH buffer sets, automatic or manual temperature compensation, temperature in °F or °C, and display Hold. A calibration due alarm function means no more out-dated calibrations. The water-resistant membrane keypad offers password protection for both set-up and calibration.
Multiple pH slopes and offset display enables quick, easy electrode diagnosis. The electrode holder can be mounted on either side of the meter. The convenient pull-out, quick-reference card keeps keypad functions at your fingertips.
Specifications:
| Product Type | Multiparameter Meter | |
| Meter style | Benchtop | |
| Dimensions (" W) | 6-7/8 | |
| Dimensions (" H) | 2-3/4 | |
| Dimensions (" L) | 6-1/8 | |
| Range (pH) | 2.000 to 20.000 | |
| Range (mV) | ± 2000 | |
| Range (Conductivity) | 0 to 500 mS | |
| Range (TDS) | 0 to 500 ppt | |
| Range (Salinity) | 0 to 80 ppt | |
| Range (Resistivity) | 0 to 20.00 M ohm | |
| Range (ISE) | 0 to 19999 ppm | |
| Range (Temperature °C) | 10 to 110 | |
| Range (Temperature °F) | 14 to 230 | |
| Resolution (pH) | 0.1/0.01/0.001 | |
| Resolution (Temperature) | 0.1 | |
| Resolution (mV) | 0.1/1 | |
| Resolution (Conductivity) | 0.01, 0.1 µS; 0.001, 0.01, 0.1 mS | |
| Resolution (TDS) | 0.01, 0.1 ppm, 0.001, 0.01, 0.1 ppt | |
| Resolution (Resistivity) | 0.01 m ohm, 0.001, 0.01 k ohm, 0.01, 0.1 ohm | |
| Resolution (ISE) | Up to 3 digits | |
| Resolution (Salinity) | 0.01, 0.1 ppm; 0.001, 0.01 ppt | |
| Accuracy (pH) | ±0.002 pH | |
| Accuracy (Temperature) | ±0.5°C | |
| Accuracy (mV) | ±0.2 mV or 0.05%, whichever is greater | |
| Accuracy (Resistivity) | ±1% full-scale | |
| Accuracy (ISE) | ±0.5% of reading | |
| Accuracy (Conductivity) | ±1% full-scale | |
| Accuracy (TDS) | ±1% of reading | |
| Accuracy (Salinity) | ±1.0% full-scale | |
| Temperature compensation | Automatic or manual | |
| Display | LCD | |
| Interface | RS-232 | |
| Calibration | Up to 6 points | |
| Connections | BNC, Temp 2.5mm | |
| Buffer recognition | USA, NIST, DIN | |
| Power | 100 to 240 VAC, 50/60 Hz | |
| Datalogging (points) | 500 | |
| CE Compliance | Yes | |
Supplied with:
- Combination pH electrode Model # WD-35805-04
- Conductivity/Temperature probe Model # WD-35412-10
- Universal 100/240 VAC power adapter
- Electrode Arm
- PC software (RS-232 cable must be purchased separately)
