Description

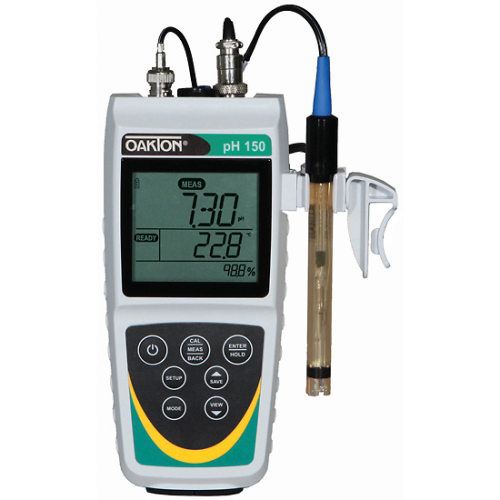

Oakton™ pH 150 Handheld Meter with Single Junction All-in-One Electrode, WD-35614-30
Features:
- Provides accurate, reliable results in a rugged, IP-67 waterproof handheld meter
- Intuitive, user-friendly icons
- Displays pH slope and electrode status
- Calibration alarm—visual reminder for recalibration
- Equipped with a Grip-Clip™ holder the secures the electrode to a beaker or other container
- Data logging for up to 150 data sets
- mV offset for calibration of ORP standards, zeroing mV value, and pH diagonostics
- 700 hour battery-life (optional universal power adapter is available for benchtop use)
- Hold function, ready indicator, automatic battery shut-off, and battery-life indicator
- Compatible with electrodes having BNC connectors
- 3 year warranty on meter
Supplied with:
- All-in-One single-junction pH/ATC electrode WD-35808-71 (91-2611-31)
- Grip-Clip™ electrode holder
- Built-in stand
- Wall-mount option for laboratory use
- AA batteries (2)
Specifications:
| Meter Type | Portable | |
| Display Type | 3-line custom LCD | |
| pH | Range | -2.00 to 16.00 pH |
| Resolution | 0.01 pH | |
| Accuracy | ± 0.01 pH | |
| Buffer recognition | Automatic recognition of DIN, NIST, or USA | |
| Calibration | Up to 6 points | |
| mV | Range | -2000 to 2000 mV |
| Resolution |
0.1 mV for ± 999.9 mV; 1 mV beyond ±1000 mV | |
| Accuracy | ± 0.2 mV | |
| Calibration | ± 200 mV | |
| Temperature | Range | -10.0 to 110.0 °C (-14.0 to 230.0 °F) |
| Resolution | 0.1 °C / 0.1 °F | |
| Accuracy | ± 0.5 °C (± 0.9 °F) | |
| Calibration | Maximum adjustment is ± 10 °C (± 18 °F) from factory default; offset 0.1 increments | |
| Compensation | Automatic or manual from - 10 to 110 °C | |
| Waterproof | Yes, IP-67 rated | |
| Memory | Yes, stores up to 150 sets with temperature | |
| Input | BNC | |
| Power |
Two AA batteries (included) or optional universal power adapter | |
| Battery life | 700 hrs | |
| Dimensions, L x W x H |
20 x 8.3 x 5.7 cm (7-7/8 x 3-1/8 x 2-3/4) | |
Additional Choices:
| Catalog No. | Mfg P/N | Description |
| 91-2603-03 | WD-35614-32 | pH 150 WP Meter Only |
| 91-2603-01 | WD-35614-30 | pH 150 WP Meter with All-in-One Probe |
| 91-2603-02 | WD-35614-90 | pH 150 WP Meter with All-in-One Probe Kit |
| 91-2603-50 | WD-35614-91 | pH 150 WP Meter with All-in-One Probe Kit and NIST-Traceable Calibration |
