Description

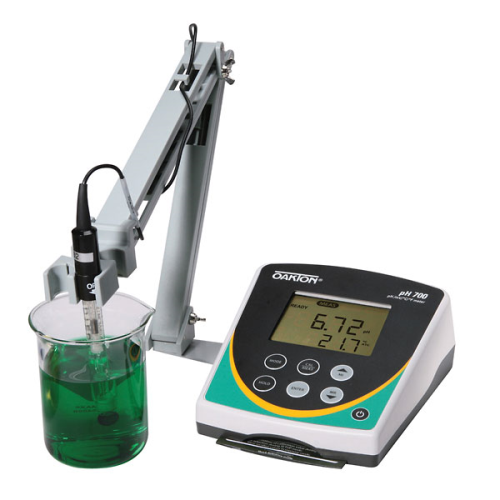

Cole Parmer® Oakton® pH 700 Benchtop Meter with All-in-One pH Electrode, WD-35419-03
Features:
- Large easy-to-read LCD dual display
- Compact footprint is up to 40% smaller than most benchtop meters
- Microprocessor-based meter measures pH, mV, relative mV, and temperature
- Automatic temperature compensation (ATC) maintains reading accuracy even with fluctuating temperatures
- Meter features HOLD, recall of electrode slope and offset, and electrode diagnostics
- Convenient pull-out quick reference card keeps procedures handy at all times
- Meter accepts any pH or ORP electrodes with a BNC connector
Includes:
- Universal 110/240 VAC power supply and adapters
- All-in-One Single Junction Epoxy pH/ATC electrode 91-2611-10 (35811-71)
Specifications:
| Meter Type | Benchtop |
| Display Type | LCD |
| Connections | pH: BNC; Temperature: 2.5 mm pin |
| Data Logging | 100 sets |
| pH Resolution | 0.01 / 0.1 pH |
| pH Calibration | Up to 5 points |
| Slope Display | Yes (with offset) |
| Buffer Recognition | Yes, NIST and USA |
| Buffer Options | USA : pH 1.68, 4.01, 7.00, 10.01,12.45 NIST: pH 1.68, 4.01, 6.86, 9.18,12.45 |
| mV Resolution | 0.1 mV (± 199.9 mV), 1 mV beyond ± 200 mV |
| Offset Adjustment | Up to ±150 mV |
| Temperature Compensation | Automatic or manual |
| Temperature Resolution | 0.1 ºC / ºF |
| Temperature Accuracy | ± 0.3 ºC / ± 0.5 ºF (0 to 70 ºC) |
| Temperature Calibration | Offset in 0.1 º increments; Offset range: ± 5.0 ºC / 9.0 ºF |
Additional Choices:
| Catalog No. | Mfg P/N | Description |
| 91-2600-10 | WD-35419-00 | pH 700 Benchtop Meter Only |
| 91-2600-14 | WD-35419-10 | pH 700 Benchtop Meter with Probes and Stand |
| 91-2600-19 | WD-35419-03 | pH 700 Benchtop Meter with All-in-One Probe |
Specifications
| Range | pH: -2.00 to 16.00 pH |
|---|---|
| Range | mV: +/-2000 mV |
| Range | Temperature: 0.0 to 100.0 °C / 32.0 to 212.0 °F |
| Power | 100 to 240 VAC, 50 or 60 Hz; AC/DC 9V, 6W Adapter included |
| Accuracy | pH: +/-0.01 pH, mV: +/-0.2 mV (+/-199.9 mV), +/- 2 mV beyond +/- 200 mV, Temperature: +/-0.3 deg C /+/- 0.5 deg F |
| Compliant/Standard | CE, CSA |
| Connectivity | pH: BNC; Temperature: 2.5 mm pin |
| Dimensions | 17.4625 cm / 6 in. width x 15.5575 cm / 6-1/8 in. length x 6.985 cm / 2-3/4 in. height |
| Manufacturer | Cole-Parmer |
| Model No | 35419-03 |
| Warranty | 3 year warranty |
