Description

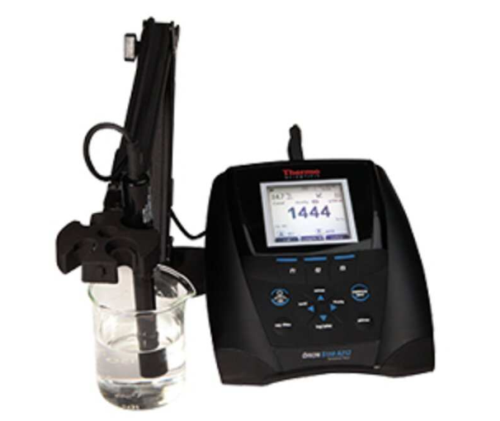

Thermo Scientific™ Orion™ Conductivity/TDS/Salinity/Resistivity Benchtop Meter Kit with DuraProbe 4-cell Conductivity Sensor, Solutions and Stand, STARA2125
Features:
- Perform up to a five-point conductivity calibration with calibration editing option that allows individual points to be fixed without full recalibration
- Auto-ranging conductivity values offer consistent readings across entire measurement range without need to recalibrate
- Use linear, non-linear, EP (USP) or off conductivity temperature compensation with 5, 10, 15, 20 or 25 °C reference temperatures
- Informative, easy-to-read, backlit graphic display with clear onscreen instructions simplifies operation
- Capture your critical readings with measurement stability indicator and selectable read modes — Auto-Read holds a stable reading, Continuous shows changing readings with hold option and Timed logs data at specific intervals
- Eliminate need for magnetic stir bars using optional meter-controlled stirrer probe (catalog number 096019) to uniformly mix solutions
- Data log collects and date/time stamps up to 2000 measurement sets with optional sample ID and user ID
- Calibration log stores 10 most recent calibrations
- Non-volatile meter memory ensures your data and settings are protected, even with loss of power
- Orion Star Com software facilitates data transfer to computer via USB or RS232 connections
- Flexible power options with universal power adapter or optional AA batteries
- IP54-rated housing resists dust and splashes, and can be wall-mounted if table space is limited
Included:
- Star A212 conductivity meter
- 91-2638-91 DuraProbe 4-cell conductivity sensor (Orion™ P/N 013005MD)
- 17-7109-02 1413 μS conductivity standard, 5 x 60 mL (Orion™ P/N 011007)
- 91-2639-61 Electrode stand Orion™ P/N STARA-BEA
- 91-2639-68 Universal power adapter (Orion™ P/N 1010003)
- Literature CD
- Printed quick start guide
- 91-2639-13 Computer interface cable (Orion™ P/N 1010053)
- Meter test certificate
Specifications:
| Compatible Probes | 2-cell or 4-cell conductivity sensors with built-in temperature |
| Cell Constant | 0.001 to 199.9 cm-1 |
| Calibration | Conductivity with calibration editing option and temperature |
| Calibration Points (Conductivity) | 5 |
| Resolution (Conductivity) | 0.001 μS minimum, auto ranging up to 4 significant digits |
| Accuracy (Conductivity) | 0.5% of reading ±1 digit > 3 μS; 0.5% of reading ±0.01 μS ≤ 3 μS |
| Temperature Compensation | Linear, nLFn (non-linear ultra pure water), nLFu (non-linear ultra pure degassed water), EP (off wit |
| Temperature (Metric) Reference | 5, 10, 15, 20, 25°C |
| Resolution (Salinity) | 0.01 psu or 0.01 ppt minimum, auto ranging |
| Accuracy (Salinity) | 0.5% of reading ±1 digit |
| Salinity Measurement Modes | Practical salinity (psu) or natural sea water (ppt) |
| Resolution (TDS) | 0.001 ppm minimum, auto ranging up to 4 significant digits |
| Accuracy (TDS) | 0.5% of reading ±1 digit |
| TDS Factor Range | Linear (0.02 to 9.99) |
| Resolution (Temperature) | 0.1 °C (0.1 °F) |
| Accuracy (Temperature) | ±0.1 °C |
| Temperature Selection | Manual or automatic with ATC temperature probe |
| Temperature Probe Calibration | 1 point temperature offset calibration |
| Display Type | Graphic LCD with Backlight |
| Backlight Option | Yes, selectable |
| Memory | Non-volatile memory preserves data log, calibration log and meter settings |
| Data Points | 2000 with date and time stamp |
| Log Function Type | Automatic data logging with Auto-Read and Timed measure modes; manual data logging with Continuous mode with hold |
| Data Management Details | Transfer single, range or all data points to printer or computer |
| Alarm Output | High/low limit alarm, calibration due alarm |
| IP Rating | IP54 |
| Probe Type | Conductivity sensor, stirrer probe (includes 013005MD Orion DuraProbe 4-cell conductivity sensor) |
| Model | Orion Star A212 Conductivity/TDS/Salinity/Resistivity/Temperature Benchtop Meter |
| Resolution (Resistivity) | 1 ohm or 0.1 megohm, auto ranging |
| Power Supply | Universal AC adapter (included) or 4 AA batteries (sold separately) |
| Methods | 10 per channel with password protection |
| Stability | Selectable fast, medium, slow or Smart Stability setting; Selectable off or Automatic Smart averaging setting |
| Keypad | Comprehensive with menu-specific function keys and dual purpose scroll/shortcut keys |
| Languages | English, Spanish, French, Italian, German and Chinese; Portuguese and Korean available with software update |
| Channels | 1 |
| Accuracy (Resistivity) | 0.5% of reading ±1 digit |
| Battery Life | 800 hr. |
Specifications
| Range | Conductivity: 0.001 microS/cm to 3000 mS/cm |
|---|---|
| Range | TDS: 0.001 to 200.0 ppm, Resistivity: 2 ohm to 100.0 megohm |
| Range | Salinity: 0.06 to 80.00 psu, 0.05 to 42.00 ppt |
| Range | Temperature: -5 degrees C to +105 degrees C |
| Power | Universal AC adapter 100 to 240 VAC/50 to 60 Hz (included) or 4 AA batteries (sold separately) |
| Compliant/Standard | CE, TUV 3-1, FCC Class A, IP54 |
| Operating Environment | Ambient 41 to 113 degrees F/5 to 45 degrees C, Relative Humidity 5 to 85%, non-condensing |
| Connectivity | Inputs: 8 pin MiniDIN (conductivity sensor with built-in temperature), stirrer input (stirrer probe) |
| Connectivity | Outputs: USB, RS232 |
| Dimensions | L x W x H: 9.5 x 7.1 x 4.3 in. / 24 x 18 x 11 cm |
| Weight | 2 lb / 0.9 kg |
| Manufacturer | Thermo Scientific Orion |
| Model No | STARA1215 |
| Warranty | 3 Year Meter |
