Description

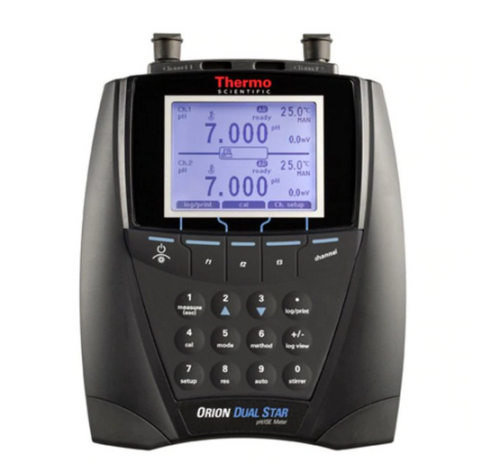

Twice the measurement capabilities with the Thermo Scientific™ Orion™ Dual Star™ pH and ISE Benchtop Meter. Record accurate and reliable pH, ion concentrate, mV, ORP and temperature measurements on two available meter channels, ideal for high throughput pH and ion analysis in the lab. Perform up to 6 point pH and ISE calibrations, log up to 1000 data point sets with time/date stamp and easily transfer to a printer or computer. Use the two channels to measure a pH sample and ISE sample, two pH samples or two ISE samples simultaneously or view each sample separately.
The Orion™ Dual Star™ pH/ISE dual channel benchtop meter accelerates sample measurement throughput by showing the results of two channels simultaneously on its large, backlit display. Measure pH, ion concentration (ISE), mV, relative mV or ORP with temperature on two channels using the meter’s two BNC, reference pin-tip and ATC temperature inputs. Collect critical measurements using an assortment of read modes and onscreen ready indicator that alerts when readings are stable. The meter’s Smart Stability and Smart Averaging functions automatically compensate for measurement conditions, so the meter displays more accurate results faster.
- View large individual measurements on a full screen display or quickly toggle to a split screen display to view two measurements at the same time
- Easy-to-follow onscreen text prompts for calibration and setup menus available in a multi-language user interface with English, Spanish, French, German or Italian options
- EZ Startup menu facilitates quick and easy first time meter setup
- Numeric keypad and menu-specific function keys allow for quick and efficient meter setup and data entry
- Selectable read modes include Auto-Read, On-Ready, At Timed Intervals, Continuous, Value Change in Measurement and Timed for a variety of measurement collection methods for different analytical methods
- Perform up to a 6 point pH calibration with automatic recognition for USA/NIST and EURO/DIN buffers with option to manually input custom buffer values
- Perform up to a 6 point ion concentration (ISE) calibration with non-linear auto-blank and low-concentration stability options or use incremental methods for single/double known addition and single/double known subtraction
- Non-volatile meter memory holds up to 1000 data points with time and date stamp
- Easily transfer data via USB and RS232 to a printer or computer with free Orion Dual Star Com communication software
- Stir samples with ease using the meter-controlled Orion Star stirrer probe
- Meter-attachable electrode stand assists with moving and maintaining electrodes
- IP54-rated housing handles splashes and is wall-mountable to save space
- Three-year meter replacement warranty
- Orion Dual Star pH/ISE benchtop meter
- 9707BNWP Orion Nitrate ion selective electrode
- 8172BNWP ROSS Sure-Flow glass-body pH electrode
- 927007MD Orion stainless steel ATC probe
- 096019 Orion Star series stirrer probe
- 930707 Orion 100 ppm nitrate standard (475ml)
- 930711 Orion nitrate ISA ionic strength adjuster (475ml)
- 810199 ROSS pH buffer and solution kit
- Electrode stand, USB cable, universal power supply, literature and meter test certificate
| Range (pH) | -2.000 to 19.999pH |
| Accuracy (pH) | ±0.002pH |
| Resolution (pH) | 0.1, 0.01, 0.001pH |
| Range (mV) | ±1999.9mV |
| Range (Relative mV) | ±1999.9mV |
| Range (ORP) | ±1999.9mV |
| Resolution (mV) | 0.1mV |
| Accuracy (mV) | ±0.2mV or ±0.05% of reading, whichever is greater |
| Range (ISE) | 0.0001 to 19900 with selectable units of ppm, Molar, mg/L, % or unit-less |
| Resolution (ISE) | 0.0001 minimum, 1 to 3 significant digits (user selectable) |
| Accuracy (ISE) | ±0.2mV or ±0.05% of reading, whichever is greater |
| Calibration | pH with calibration editing option, ion concentration (ISE) with calibrationediting option, relative mV (RmV), ORP and temperature |
| Calibration Points (pH) | 1 to 6 |
| Calibration Points (ISE) | 2 to 6 |
| Calibration Points | 1 point relative mV (RmV) mode, 1 point ORP mode |
| Isopotential Point | 7.000pH (adjustable), 1.000 ISE (adjustable) |
| Range (Temperature) | -5.0° to 105.0°C, 22.0° to 221.0°F |
| Resolution (Temperature) | 0.1°C, 0.1°F |
| Accuracy (Temperature) | ±0.1°C |
| Temperature Selection | Manual or automatic with ATC temperature probe |
| Temperature Probe Calibration | 1 point temperature offset calibration |
| Channels | 2 |
| Backlight Option | Yes, adjustable |
| Display Type | Graphic LCD with backlight |
| Keypad | Numeric with menu-specific function keys and dual purposescroll/shortcut keys |
| Measurement Modes | pH, mV, relative mV (RmV), ORP or ion concentration (ISE)with temperature |
| Stability | Smart Stability and Smart Averaging |
| Data Management Details | Transfer single, range or all data points to printer or computer |
| Log Function Type | Automatic data logging with Auto-Read, On Ready, At Timed Intervals,Value Change in Measurement and Timed Reading measure modes,manual data logging with Continuous measure mode. |
| Data Points | 1000 with date and time stamp |
| Alarm Output | High/low limit alarm |
| Memory | Non-volatile memory preserves data log, calibration log and meter settings |
| Methods | 10 per channel with password protection |
| Inputs | Two BNC (pH, ORP or ion selective electrode), two pin-tip (reference electrode), two 8 pin MiniDIN (ATC temperature probe), stirrer input (stirrer probe) |
| Outputs | USB, RS232 |
| Languages | English, Spanish, French, Italian and German |
| Probe Type | pH electrode, ORP electrode, ion selective electrode (ISE), reference half-cell electrode, ATC temperature probe, stirrer probe (includes 8102BNUWP ROSS Ultra pH electrode, 927007MD Orion ATC probe) |
| AC Adapter | Universal 50-60 Hz, 100-240 Vac power adapter |
| Power Supply | Universal AC adapter (included) |
| Electrical Requirements | 90 to 260Vac 50/60Hz |
| IP Rating | IP-54 |
| Operating Temperature | 41° to 113°F / 5° to 45°C (ambient) |
| Relative Humidity Range | 5 to 85%, non-condensing |
| Dimensions (L x W x H) | 24 x 17 x 9cm (9.5 x 6.7 x 3.5 in) |
| Weight | 2 lb. (0.9kg) |
| Certification Compliance | CE, TU 3-1, FCC Class A |
