Description

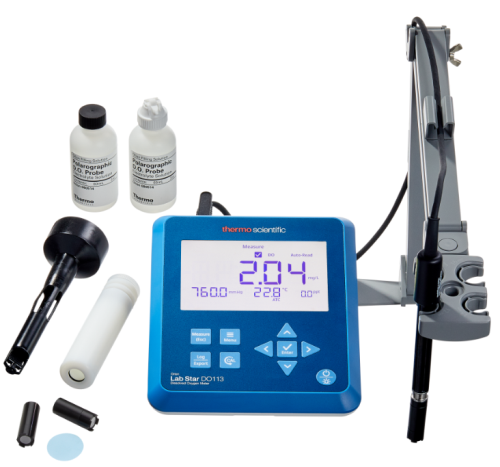

Thermo Scientific™ Orion™ Lab Star™ DO113 Dissolved Oxygen Bench Meter Standard Kit, LSTAR1135
Features:
- Budget-friendly DO meter for simplified dissolved oxygen as percent saturation or concentration testing
- Display shows dissolved oxygen, barometric pressure, temperature and salinity simultaneously for accurate data recording
- Measure 0.0 to 300.0 % saturation, 0.00 to 30.0 mg/L or ppm and -5.0 to 105.0 °C or 23.0 to 221.0 °F to ensure comprehensive measurement capabilities
- Perform 100% and 0% saturation calibrations, one point concentration calibration using a custom value (Winkler) and one point temperature adjustment calibrations for proficient SOP compliance
- Use automatic barometric pressure compensation for DO measurements with manual value entry in mmHg or bar
- Use automatic salinity compensation for DO measurements with value manual entry of 0.0 to 50.0 ppt
- Large 5 inch backlit display makes viewing and recording measurements easy
- Small meter footprint saves valuable bench space in your lab
- Onscreen stabilizing and ready indicators help identify when readings are complete
- Date and time data stamped data and calibration logs support GLP compliance
- View active DO and temperature calibration logs with date and time stamp to ensure accurate, reproducible measurements
- Use 500-point data log with date and time stamp to record key measurements
- Output data and calibration logs to a printer or computer for long-term data storage
Included:
- 91-2661-50 (Orion™ 083005MD) polarographic DO/ATC probe with calibration sleeve
- 20-7607-19 (Orion™ 080513) DO probe maintenance kit
- 91-2661-48 (Orion™ 080360) BOD adapter
- Orion™ DO113 Meter with electrode stand 91-2661-45 (Orion™ LSTAR-ARM)
- 91-2661-46 (Orion™ LSTAR-USB) PC cable
- 91-2661-47 (Orion™ LSTAR-PWR) Universal twist-and-lock power adapter
Specifications:
| Description | Orion Lab Star DO113 dissolved oxygen bench meter standard kit |
| For Use With (Application) | For a Wide Variety of Dissolved Oxygen Samples Including BOD (with Included Adapter) |
| Measurement Modes | Dissolved oxygen as percent saturation with temperature; dissolved oxygen as concentration in mg/L with temperature; dissolved oxygen as concentration in ppm with temperature |
| Sensor Types | Polarographic |
| Resolution (Polarographic DO) | 0.1, 1 % saturation; 0.01, 0.1 mg/L or ppm |
| Calibration Modes | 100 % saturation, 0 % saturation, custom concentration value |
| Resolution (Temperature) | 0.1 °C, 0.1 °F |
| Accuracy (Temperature) | +/-0.3 °C, +/-0.5 °F |
| Temperature Selection | Manual or automatic with ATC temperature probe |
| Temperature Probe Calibration | 1 point temperature offset calibration |
| Display Type | 5 in. backlit LCD |
| Backlight Option | Yes |
| Memory | Non-volatile |
| Data Points | 500 data sets with time and date |
| Log Function Type | Automatic with Auto-Read and Timed read modes, manual with Continuous read mode |
| Data Management Details | Continuous, Auto-Read and Timed read modes |
| Alarm Output | Calibration reminder alarm |
| Inputs | 9-pin MiniDIN for DO and ATC |
| Outputs | Computer or printer (STARA-106) |
Specifications
| Range | Polarographic DO: 0.0 to 300.0 % saturation; 0.00 to 30.0 mg/L or ppm |
|---|---|
| Range | Temperature: -5.0 degrees C to +105.0 degrees C |
| Range | Pressure: 400.0 to 850.0 mm Hg; 0.533 to 1.133 bar |
| Power | Universal 100-240 V 50/60 Hz power adapter with US/International plugs |
| Accuracy | DO: +/-2 % saturation +/- 1 LSD; +/-0.2 mg/L or ppm +/- 1 LSD |
| Compliant/Standard | CE, TUV 3-1, FCC Class A, IP54 |
| Operating Environment | Relative humidity: 5 to 85%, non-condensing |
| Connectivity | Inputs: 9-pin MiniDIN for DO and ATC |
| Connectivity | Outputs: Computer or printer (STARA-106) |
| Dimensions | L x W x H: 187.2 x 155.2 x 61.7 mm / 7.37 x 6.11 x 2.43 in. |
| Weight | 700 g / 1.54 lbs |
| Manufacturer | Thermo Scientific Orion |
| Model No | LSTAR1135 |
| Warranty | 3 year |
