Description

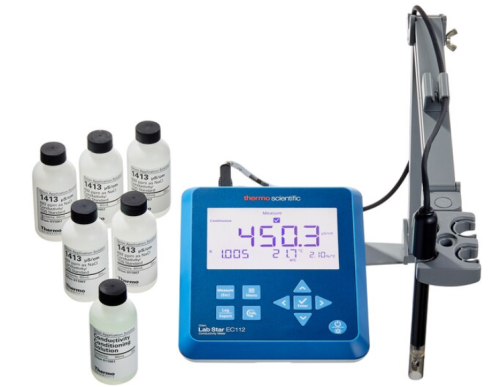

Thermo Scientific™ Orion™ Lab Star™ EC112 Conductivity/Salinity/TDS Bench Meter Kit with 011050MD 2-cell K = 1.0 Epoxy-Body Conductivity/ATC Probe, LSTAR1125
Features:
- Budget-friendly conductivity meter for simplified conductivity, salinity and TDS testing
- Display shows conductivity, cell constant, temperature and temperature coefficient simultaneously for accurate data recording
- Measure 0.00 microS to 500.0 mS conductivity, 0.00 to 80.0 ppt or 0.00 to 42.0 PSU salinity, 0.00 ppm to 500.0 ppt TDS and -5.0 to 105.0 degrees C or 23.0 to 221.0 degrees F to ensure comprehensive measurement capabilities
- Perform one to five point conductivity and TDS calibrations, one point salinity calibrations and one point temperature adjustment calibrations for proficient SOP compliance
- Large 5 inch backlit display makes viewing and recording measurements easy
- Small meter footprint saves valuable bench space in your lab
- Onscreen stabilizing and ready indicators help identify when readings are complete
- Date and time data stamped data and calibration logs support GLP compliance
- View active conductivity, salinity, TDS and temperature calibration logs with date and time stamp to ensure accurate, reproducible measurements
- Use 500-point data log with date and time stamp to record key measurements
- Output data and calibration logs to a printer or computer for long-term data storage
Included:
- Meter
- Electrode stand LSTAR-ARM (91-2661-45)
- PC cable LSTAR-USB (91-2661-46)
- Universal power adapter LSTAR-PWR (91-2661-47)
- 2-cell K = 1.0 epoxy-body conductivity/ATC probe, 011050MD (91-2639-131)
- 1413 μS conductivity standard 5 x 60 mL, 011007 (17-7109-02)
Specifications:
| Description | Orion Lab Star EC112 conductivity/salinity/TDS bench meter with stand |
| For Use With | 2-cell and 4-cell conductivity electrodes |
| Measurement Modes | Conductivity with Temperature, Salinity with Temperature, TDS with Temperature |
| Cell Constant | 0.100 to 10.00 cm-1 |
| Salinity Measurement Modes | Natural Seawater (ppt) or Practical Salinity (PSU) |
| Resolution (Conductivity) | 0.01, 0.1, 1 microS; 0.01, 0.1 mS |
| Resolution (Salinity) | 0.01, 0.1 ppt; 0.01, 0.1 PSU |
| Resolution (TDS) | 0.01, 0.1, 1 ppm; 0.01, 0.1 ppt |
| Resolution (Temperature) | 0.1 degrees C, 0.1 degrees F |
| Temperature Selection | Manual or automatic with ATC temperature probe |
| Conductivity Calibration | 1 to 5 points |
| Salinity Calibration | 1 point |
| TDS Calibration | 1 to 5 points |
| Temperature Probe Calibration | 1 point temperature offset calibration |
| Display Type | 5 in. backlit LCD |
| Backlight Option | Yes |
| Memory | Non-volatile |
| Data Points | 500 data sets with time and date |
| Log Function Type | Automatic with Auto-Read and Timed read modes, manual with Continuous read mode |
| Data Management Details | Continuous, Auto-Read and Timed read modes |
| Alarm Output | Calibration reminder alarm |
Specifications
| Range | Conductivity: 0.00 microS to 500.0 mS |
|---|---|
| Range | Salinity: 0.00 to 80.0 ppt; 0.00 to 42.0 PSU |
| Range | TDS Factor: 0.40 to 1.00 |
| Capacity | Temperature: -5.0 to +105.0 degrees C / 23.0 to 221.0 degrees F |
| Power | Universal 100-240 V 50/60 Hz power adapter with US/International plugs |
| Compliant/Standard | CE, TUV 3-1, FCC Class A, IP54 |
| Operating Environment | Relative humidity: 5 to 85%, non-condensing |
| Connectivity | Inputs: 8-pin MiniDIN for conductivity with built-in ATC |
| Connectivity | Outputs: Computer or printer (STARA-106) |
| Dimensions | L x W x H: 187.2 x 155.2 x 61.7 mm / 7.37 x 6.11 x 2.43 in. |
| Weight | 700 g / 1.54 lbs |
| Manufacturer | Thermo Scientific Orion |
| Model No | LSTAR1125 |
| Warranty | 3 year |
