Description

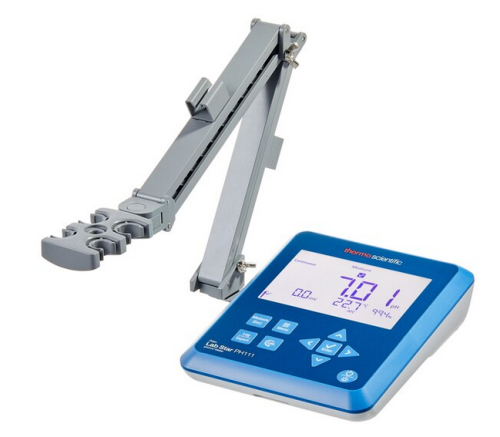

Thermo Scientific™ Orion™ Lab Star™ PH111 pH/mV Bench Meter with Electrode Stand, PC cable, 100-240V 50/60Hz, LSTAR1110
Features:
- Budget-friendly pH meter for simplified pH and ORP testing
- Display shows pH, mV and temperature simultaneously for accurate data recording
- Measure -2.000 to 18.000 pH, -2000.0 to +2000.0 mV and -5.0 to 105.0 degrees C or 23.0 to 221.0 degrees F to ensure comprehensive measurement capabilities
- Perform one to five point pH calibrations, one point ORP calibrations and one point temperature adjustment calibrations for proficient SOP compliance
- Large 5 inch backlit display makes viewing and recording measurements easy
- Small meter footprint saves valuable bench space in your lab
- Onscreen stabilizing and ready indicators help identify when readings are complete
- pH electrode condition icon helps ensure reliable electrode performance
- Date and time data stamped data and calibration logs support GLP compliance
- View active pH, ORP and temperature calibration logs with date and time stamp to ensure accurate, reproducible measurements
- Use 500-point data log with date and time stamp to record key measurements
- Output data and calibration logs to a printer or computer for long-term data storage
Included:
- Meter
- Electrode stand LSTAR-ARM (91-2661-45)
- PC cable LSTAR-USB (91-2661-46)
- Universal power adapter LSTAR-PWR (91-2661-47)
Specifications:
| Description | Orion Lab Star PH111 bench pH/mV meter with stand |
| For Use With | Wide Variety of pH and ORP electrodes with BNC connectors, ATC probes with 8-pin MiniDin connector |
| Measurement Modes | pH with mV and Temperature, ORP with mV and Temperature |
| Resolution (pH) | 0.001, 0.01, 0.1 |
| Resolution (mV) | 0.1 mV |
| Resolution (Temperature) | 0.1 degrees C, 0.1 degrees F |
| Temperature Selection | Manual or automatic with ATC temperature probe |
| pH Calibration | 1 to 5 points |
| ORP Calibration | 1 point |
| Temperature Probe Calibration | 1 point temperature offset calibration |
| Display Type | 5 in. backlit LCD |
| Backlight Option | Yes |
| Memory | Non-volatile |
| Data Points | 500 data sets with time and date |
| Log Function Type | Automatic with Auto-Read and Timed read modes, manual with Continuous read mode |
| Data Management Details | Continuous, Auto-Read and Timed read modes |
| Alarm Output | Calibration reminder alarm |
Specifications
| Range | pH: -2.000 to 18.000 |
|---|---|
| Range | mV: +/-2000.0 |
| Range | ORP: +/-2000.0 mV with +/-250 mV offset |
| Range | Temperature: -5.0 to +105.0 degrees C / 23.0 to 221.0 degrees F |
| Power | Universal 100-240 V 50/60 Hz power adapter with US/International plugs |
| Accuracy | pH: +/-0.005, +/-1 LSD, mV or ORP: +/-0.2 or +/-0.05%, whichever is greater, Temperature: +/-0.3 degrees C/+-/0.5 degree |
| Compliant/Standard | CE, TUV 3-1, FCC Class A, IP54 |
| Operating Environment | Relative humidity: 5 to 85%, non-condensing |
| Connectivity | Inputs: BNC for pH or ORP, 8-pin MiniDIN for ATC |
| Connectivity | Outputs: Computer or printer (STARA-106) |
| Dimensions | L x W x H: 198.3 x 155.2 x 61.7 mm / 7.81 x 6.11 x 2.43 in. |
| Weight | 700 g / 1.54 lbs |
| Manufacturer | Thermo Scientific Orion |
| Model No | LSTAR1110 |
| Warranty | 3 year |
