Description

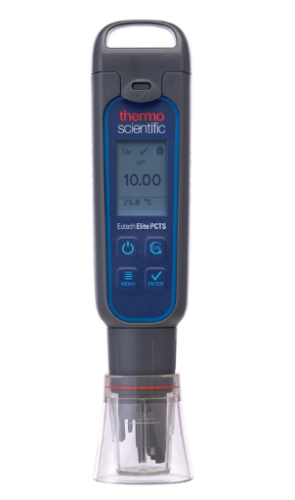

Thermo Scientific™ Orion™ pH / Conductivity / TDS / Salinity Pocket Testers and Replacement Sensors, ELITEPCTS
Features:
- Flexible testing option
- Measure pH, conductivity, TDS or salinity with temperature
- Large back-lit graphic display
- Uses 4 x AAA alkaline batteries
- Average 150 hours of battery life
- Wide leak-proof cap serves as stable base
- Durable, with a large backlit screen, one-touch calibration feature
- Replaceable sensors
- One-year warranty for tester
- Six-month warranty for replacement sensors
Applications:
- Beverages including homebrew beer and wine
- Food Hydroponics
- Aquaculture
- Aquariums
- Environmental monitoring
- More
Included:
- Pocket Tester
- Batteries, 4 x AAA alkaline
- Lanyard
- Soft case
Specifications:
| Accuracy (Conductivity) | ± 1% full scale |
| Accuracy (pH) | ±0.02 |
| Accuracy (Salinity) | ± 1% full scale |
| Accuracy (TDS) | ± 1% full scale |
| Backlight Option | Yes |
| Battery Life | 150 hr. (average) |
| Calibration | Point to point |
| Calibration Modes | pH, conductivity, TDS, salinity, temperature |
| Calibration Points | 1 to 3 |
| Calibration Points (Conductivity) | 1 to 3 |
| Calibration Points (pH) | 1 to 3 |
| Description | Elite PCTS pocket tester for measuring pH, conductivity, TDS or salinity with temperature |
| Display Type | Graphic Dot Matrix |
| IP Rating | IP 67 |
| Measurement Modes | pH, conductivity, TDS, salinity, temperature |
| Resolution (pH) | 0.01 |
| For Use With (Application) | Drinking water, environmental, food & beverage, pool & spa, agriculture |
| Includes | Elite PCTS tester with batteries, lanyard and soft carry case |
| Keypad | 4 key |
| Probe Type | Analog |
| Resolution (Conductivity) | 0.1 μS/cm for 0.0 to 200.0 μS/cm; 1 μS/cm for200 to 2000 μS/cm; 0.01 mS/cm for 2.00 to 20.00 mS/cm |
| Resolution (Salinity) | 0.10 ppt |
| Resolution (TDS) | 0.1 ppm for 0.0 to 100.0 ppm; 1 ppm for 100 to 1000 ppm; 0.01 ppt for 0.10 to 10.00 ppt |
| Salinity Measurement Modes | Per practical salinity curve |
| Stability | 0.40 to 1.00 (selectable) |
| TDS Factor Range | 0.40 to 1.00 (selectable) |
| Temperature Accuracy | ±0.6°C, ±1.0°F for 0.0 to 50.0°C; ±1.1°C, ±1.9°F for 50.1 to 60.0°C |
| Temperature Compensation | Yes |
| Temperature Probe Calibration | 1 point |
| Temperature Resolution | 0.1°C, 0.1°F |
| Temperature Selection | ATC |
| Temperature Sensor | Thermistor |
Specifications
| Range | pH: -1.00 to 15.00 |
|---|---|
| Range | Conductivity: 0.00 to 20.00 mS/cm |
| Range | TDS: 0.00 to 10.00 ppt, Salinity: 0.00 to 10.00 ppt |
| Range | Temperature: 0 degrees C to 60.0 degrees C / 32.0 degrees F to 140.0 degrees F |
| Power | 4 x AAA Alkaline |
| Compliant/Standard | CE, FCC, IP67 |
| Operating Environment | Temperature: 5 degrees C to 45 degrees C, Relative Humidity: 5 to 85 %, non-condensing |
| Dimensions | L x W x H: 200 x 45 x 36 mm |
| Weight | 165 g (Including battery) / shipping: 175 g |
| Manufacturer | Thermo Scientific Orion |
| Model No | ELITEPCTS |
| Warranty | 1 year for Tester / 6 months replaceable sensor |
