Description

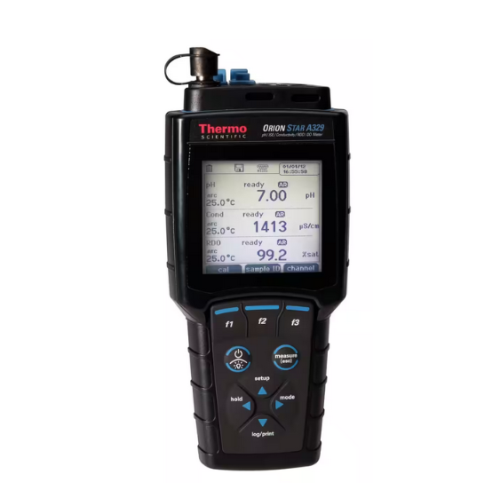

Thermo Scientific™ Orion™ Star™ A329 pH/ISE/Conductivity/RDO/DO Portable Meter Kit with ROSS Ultra Triode™ Low Maintenance Gel pH/ATC Electrode, DuraProbe™ 4-cell Conductivity Sensor, RDO Optical DO Sensor, Solutions, Meter Armor and Field Case, STARA3295
Features:
- Combined convenience with benefits of pH/ISE meter, conductivity meter and dissolved oxygen meter in one easy-to-use system
- Measure pH, ion concentration, mV, relative mV or ORP with temperature on channel one; measure conductivity, TDS, salinity or resistivity with temperature on channel two; and measure dissolved oxygen in percent saturation or mg/L with temperature using RDO optical DO probes or polarographic DO probes on channel three
- Easily view individual measurements on full screen display and quickly toggle to split screen display to view multiple measurements simultaneously
- Perform up to five point pH and ISE calibrations with calibration editing option that allows individual points to be fixed without a full recalibration
- Perform up to five point conductivity calibration
- Auto-ranging conductivity values offer consistent readings across entire measurement range without need to recalibrate
- Use linear, non-linear, EP (USP) or off conductivity temperature compensation with 5 °C, 10 °C, 15 °C, 20 °C or 25 °C reference temperatures
- Calibrate dissolved oxygen using water-saturated air, air-saturated water, custom value (Winkler titration) and zero point options
- Automatically compensate dissolved oxygen readings using ATC temperature, manual salinity input and built-in barometer for barometric pressure readings
- Informative, easy-to-read backlit graphic display with clear onscreen instructions simplifies operation
- Capture your critical readings with measurement stability indicator and selectable read modes — Auto-Read holds stable reading, Continuous shows changing readings with hold option and Timed logs data at specific intervals
- Data log collects and date/time stamps up to 5000 measurement sets with optional sample ID and user ID
- Calibration log stores 10 most recent calibrations
- Non-volatile meter memory ensures your data and settings are protected, even with loss of power
- Orion™ Star™ Com software facilitates data transfer to computer via USB or RS232 connections
- Flexible power options with AA batteries or optional universal power adapter
- IP67-rated housing is waterproof for rugged field operation
Included:
- Star™ A329 pH/ISE/Conductivity/RDO/DO Meter with Batteries
- 91-2661-53 (8107UWMMD) ROSS™ Gel-filled Epoxy pH/ATC Triode with 3 Meter Cable
- 91-2661-49 (013010MD) DuraProbe™ Epoxy 4-Probe (K=0.475) Conductivity Probe with 3 Meter Cable
- 91-2661-52 (087010MD) RDO Optical DO Probe with 3 Meter Cable
- 21-2112-04 (910410) Orion™ pH 4.01 Buffer, 10 pouches
- 21-2112-07 (910710) Orion™ pH 7.00 Buffer, 10 pouches
- 21-2112-10 (911010) Orion™ pH 10.01 Buffer, 10 pouches
- 91-2668-06 (810001) Orion™ ROSS™ electrode storage solution, 475 mL
- 17-7109-06 (01100710) Orion™ 1413 µS conductivity standard, 10 pouches
- 21-2112-21 (911110) rinse solution, 10 pouches
- 91-2639-63 (STARA-AR) protective armor with probe holders
- 91-2639-60 (STARA-CS) hard carrying case
- Four AA batteries (installed)
- Printed quick start guide
- Literature CD
- USB computer cable
Specifications:
| Accuracy (Barometer) | ±6 mm Hg |
| Accuracy (Conductivity) | 0.5% of reading ±1 digit > 3 μS; 0.5% of reading ±0.01 μS ≤ 3 μS |
| Accuracy (ISE) | ±0.2 mV or ±0.05% of reading whichever is greater |
| Accuracy (mV) | ±0.2 mV or ±0.05% of reading whichever is greater |
| Accuracy (pH) | ±0.002 |
| Accuracy (Polarographic DO) | ±0.2 mg/L or ±2% of reading, whichever is greater |
| Accuracy (RDO) | ±0.1 mg/L up to 8 mg/L, ±0.2 mg/L from 8 to 20 mg/L, ±10% of reading up to 50 mg/L |
| Accuracy (Resistivity) | 0.5% of reading ±1 digit |
| Accuracy (Salinity) | 0.5% of reading ±1 digit |
| Accuracy (TDS) | 0.5% of reading ±1 digit |
| Advanced ISE Functions | Segmented (point-to-point) slope, non-linear selectable auto-blank, low concentration range stabilit |
| Alarm Output | High/low limit alarm, calibration due alarm |
| Backlight Option | Yes, selectable |
| Barometric Pressure Correction | 400 to 850 mm Hg, automatic using built-in barometer or manual entry |
| Battery Life | 800 hr. |
| Calibration | pH with calibration editing option, ion concentration (ISE) with calibration editing option, relativ |
| Calibration Modes | Water-saturated air, air-saturated water, manual (Winkler titration), zero point |
| Calibration Points | 1 point relative mV (RmV) mode, 1 point ORP mode |
| Calibration Points (Conductivity) | Up to 5 |
| Calibration Points (ISE) | 1 to 5 |
| Calibration Points (pH) | 1 to 5 |
| Cell Constant | 0.001 to 199.9 cm-1 |
| Data Management Details | Transfer single, range or all data points to printer or computer |
| Data Points | 5000 with date and time stamp |
| Channels | 3 |
| Display Type | LCD Graphic, Backlit |
| IP Rating | IP 67 |
| Measurement Modes | pH, mV, relative mV (RmV) or ORP with temperature; conductivity, TDS, salinity or resistivity with temperature |
| Outputs | USB, RS232 |
| Percent Saturation Range Polarographic DO | 0.0 to 600.0 % saturation |
| Range (Salinity) | 0.06 to 80.00 psu, 0.05 to 42.00 ppt |
| Range (TDS) | 0.001 to 200.0 ppm |
| Resolution (ISE) | 0.0001 minimum, 1 to 3 significant digits (user selectable) |
| Resolution (pH) | 0.1/0.01/0.001 |
| Inputs | BNC (pH or ORP electrode), pin-tip (reference electrode), 8 pin MiniDIN (conductivity sensor with built-in temperature or ATC temperature probe), 9 pin MiniDIN (RDO optical or polarographic DO sensor with built-in temperature) |
| Isopotential Point | 7.000 pH |
| Keypad | Comprehensive with menu-specific function keys and dual purpose scroll/shortcut keys |
| Languages | English, Spanish, French, Italian, German and Chinese; Portuguese and Korean available with software update |
| Log Function Type | Automatic data logging with Auto-Read and Timed measure modes; manual data logging with Continuous m |
| Memory | Non-volatile memory preserves data log, calibration log and meter settings |
| Methods | 10 per channel with password protection |
| Percent Saturation Range (Polarographic DO) | 0.0 to 600.0 % saturation |
| Percent Saturation Relative Accuracy (RDO) | ±2 % saturation ≤ 200 % saturation, ±10 % saturation > 200 % saturation |
| Percent Saturation Resolution (Polarographic DO) | 0.1, 1 % saturation |
| Percent Saturation Range (RDO) | 0.0 to 500.0 % saturation |
| Percent Saturation Relative Accuracy (Polarographic DO) | ±2 % saturation or ±2% of reading whichever is greater |
| Percent Saturation Resolution (RDO) | 0.1, 1 % saturation |
| Pressure Range | 400 to 850 mm Hg |
| Pressure Resolution | 1 mm Hg |
| Range (ISE) | 0.0001 to 19900 with selectable units of ppm, Molar, mg/L, %, ppb or none |
| Resolution (Conductivity) | 0.001 μS minimum, auto ranging up to 4 significant digits |
| Resolution (mV) | 0.1mV |
| Resolution (Polarographic DO) | 0.01, 0.1mg/L |
| Resolution (RDO) | 0.01, 0.1mg/L |
| Resolution (Resistivity) | 1 ohm or 0.1 meg-ohm, auto ranging |
| Resolution (Salinity) | 0.01 psu or 0.01 ppt minimum, auto ranging |
| Resolution (TDS) | 0.001 ppm minimum, auto ranging up to 4 significant digits |
| Salinity Factor | 0.0 to 45.0 ppt, automatic correction using conductivity reading or manual entry of sample salinity |
| Salinity Measurement Modes | Practical salinity (psu) or natural sea water (ppt) |
| Stability | Selectable fast, medium, slow or Smart Stability setting; Selectable off or Automatic Smart averaging setting |
| TDS Factor Range | Linear (0.02 to 9.99) |
| Temperature Accuracy | ±0.1 °C |
| Temperature Compensation | Linear, nLFn (non-linear ultra pure water), nLFu (non-linear ultra pure degassed water), EP (off with warning) or off |
| Temperature (Metric) Reference | 5, 10, 15, 20, 25°C |
| Temperature Probe Calibration | 1 point temperature offset calibration |
| Temperature Resolution | 0.1°C, 0.1°F |
| Temperature Selection | Manual or automatic with ATC temperature probe |
Specifications
| Range | pH: -2.000 to 20.000, mV, Relative mV and ORP: +/- 2000.0 mV |
|---|---|
| Range | Conductivity: 0.001 microS/cm to 3000 mS/cm, Resistivity: 2 ohm to 100.0 meg-ohm |
| Range | RDO: 0.00 to 50.00 mg/L, Polarographic DO: 0.00 to 90.00 mg/L |
| Range | Temperature: - 5 to 105 degrees C (22.0 to 221.0 degrees F) |
| Power | 4 AA (included) / Universal 50-60 Hz, 100-240 VAC power adapter (optional) |
| Compliant/Standard | CE, TUV 3-in-1 and FCC Class A |
| Operating Environment | Ambient Temperature: 5 degrees C to 45 degrees C (41 degrees F to 113 degrees F), RH: 5 to 85 %, non-condensing |
| Connectivity | Input: pH: BNC/reference pin, Conductivity: 8 pin Mini-DIN, DO: 9-pin Mini-DIN |
| Connectivity | Output: RS232, USB |
| Dimensions | L x W x H: 24 cm x 10 cm x 6.5 cm (9.5 in. x 3.9 in. x 2.6 in.) |
| Weight | 0.5 kg (1.2 lb.) |
| Manufacturer | Thermo Scientific Orion |
| Model No | STARA3295 |
| Warranty | 3 year |
