Description
Thermo Scientific™ Orion™ Star™ A222 Conductivity/TDS/Salinity/Resistivity Portable Meter Kit with DuraProbe™ 4-Cell Conductivity Sensor, Solutions, Meter Armor and Field Case, STARA2225
Features:
- Record accurate and reliable conductivity, total dissolved solids (TDS), salinity, resistivity and temperature measurements in user-friendly package for dedicated conductivity testing needs
- Ideal for wide range of applications and advanced conductivity analysis in the field
- Temperature compensated readings using linear, non-linear or EP options with 15 °C, 20 °C or 25 °C reference temperatures
- Log up to 1000 data point sets with time/date stamp and transfer via USB or RS232 to a printer or computer
- Waterproof meter ensures durable, rugged performance with an IP67-rated housing
- Displays critical data with measurement including temperature, date and time, read type, measurement stability, active calibration info and power source status.
- Perform up to a five point conductivity calibration
- Auto-ranging conductivity values offer consistent readings across entire measurement range without need to recalibrate
- Informative, easy-to-read backlit graphic display with clear onscreen instructions simplifies operation
- Capture critical readings with measurement stability indicator and selectable read modes – Auto-Read holds a stable reading and Continuous shows changing readings with hold option
- Non-volatile meter memory ensures your data and settings are protected, even with loss of power
- Orion™ Star Com™ software facilitates data transfer to a computer via USB or RS232 connections
- Flexible power options with AA batteries or universal power adapter
Included:

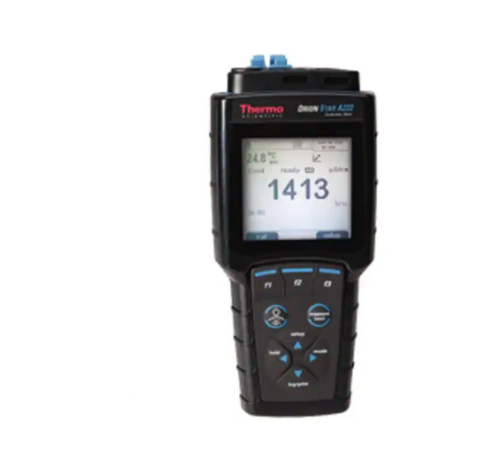

- Star™ A222 conductivity meter
- 4 AA batteries
- 91-2661-49 (Orion™ 013010MD) DuraProbe Epoxy 4-Probe (K=0.475) Conductivity Probe with 3 Meter Cable
- 17-7109-06 (Orion™ 01100710) Conductivity 1413uS Standard Pouches
- 21-2112-21 (Orion™ 911110) Rinse Solution Pouches
- 91-2639-60 (Orion™ STARA-CS) Star A Meter Hard Carrying Case
- 91-2639-63 (Orion™ STARA-AR) Protective Armor with Electrode Holder
- Printed quick start guide and literature CD
- Computer interface cable
- Meter test certificate
Specifications:
| Accuracy (Resistivity) | 0.5% of reading ±1 digit |
| Accuracy (Salinity) | 0.5% of reading ±1 digit |
| Accuracy (TDS) | 0.5% of reading ±1 digit |
| Accuracy (Temperature) | ±0.1 °C |
| Alarm Output | Calibration due alarm (fixed 12 hour) |
| Backlight Option | Yes, selectable |
| Battery Life | 800 hr. |
| Calibration | Conductivity and temperature |
| Calibration Points (Conductivity) | 5 |
| Cell Constant | 0.001 to 199.9 cm-1 |
| Channels | 1 |
| Compatible Probes | 2-cell or 4-cell conductivity sensors with built-in temperature |
| Data Management Details | Transfer single, range or all data points to printer or computer |
| Accuracy (Conductivity) | 0.5% of reading ±1 digit > 3 μS; 0.5% of reading ±0.01 μS ≤ 3 μS |
| Data Points | 1000 with date and time stamp |
| Display Type | Graphic LCD with Backlight |
| IP Rating | IP67 |
| Measurement Modes | Conductivity, TDS, salinity or resistivity with temperature |
| Keypad | Comprehensive with menu-specific function keys and dual purpose scroll/shortcut keys |
| Languages | English, Spanish, French, Italian, German and Chinese; Portuguese and Korean available with software update |
| Log Function Type | Automatic data logging with Auto-Read measure mode; manual data logging with Continuous measure mode |
| Memory | Non-volatile memory preserves data log, calibration log and meter settings |
| Methods | 10 per channel with password protection |
Specifications
| Range | Conductivity: 0.001 microS/cm to 3000 mS/cm |
|---|---|
| Range | TDS: 0.001 to 200.0 ppm; Resistivity: 2 ohm to 100.0 megohm |
| Range | Salinity: 0.06 to 80.00 psu, 0.05 to 42.00 ppt |
| Range | Temperature: -5 degrees C to +105 degrees C |
| Power | 4 AA batteries (included) or universal AC adapter (sold separately) |
| Compliant/Standard | CE, TUV 3-1, FCC Class A |
| Operating Environment | Ambient: 5 degrees C to 45 degrees C (41 degrees F to 113 degrees F) Relative Humidity: 5 to 85%, non-condensing |
| Connectivity | Inputs: 8 pin MiniDIN (conductivity sensor with built-in temperature) |
| Connectivity | Outputs: USB, RS232 |
| Dimensions | L x W x H: 24 x 10 x 6.5 cm (9.5 x 3.9 x 2.6 in.) |
| Weight | 0.5 kg (1.2 lb) |
| Manufacturer | Thermo Scientific Orion |
| Model No | STARA2225 |
| Warranty | 3 year |
