Description

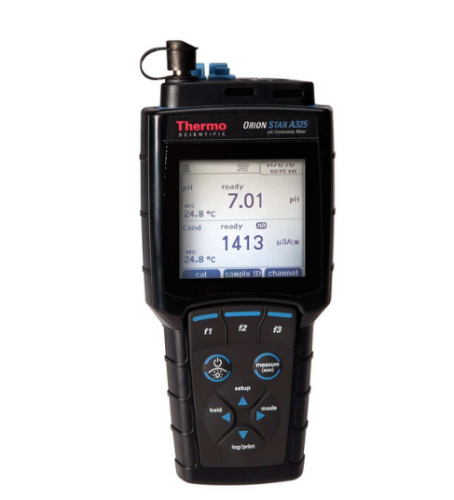

Thermo Scientific™ Orion™ Star™ A325 pH/mV/RmV/ORP/Conductivity/TDS/Salinity/Resistivity/Temperature Portable Multiparameter Meter Kit with pH Electrode and Conductivity Cell, STARA3255
Features:
- Combined convenience with the benefits of a pH meter and conductivity meter in one easy-to-use system
- Measure pH, mV, relative mV or ORP with temperature on channel one and measure conductivity, TDS, salinity or resistivity with temperature on channel two
- Easily view individual measurements on a full screen display and quickly toggle to a split screen display to view multiple measurements simultaneously
- Perform up to a five point pH calibration using automatic buffer recognition of NIST or DIN buffer groups with choice to manually enter custom buffer values
- Perform up to a 5 point conductivity calibration
- Calibration editing option allows individual points to be fixed without a full recalibration
- Auto-ranging conductivity values offer consistent readings across entire measurement range without need to recalibrate
- Use linear, non-linear, EP (USP) or off conductivity temperature compensation with 5 °C, 10 °C, 15 °C, 20 °C or 25 °C reference temperatures
- Informative, easy-to-read backlit graphic display with clear onscreen instructions simplifies operation
- Capture your critical readings with measurement stability indicator and selectable read modes — Auto-Read holds a stable reading, Continuous shows changing readings with hold option and Timed logs data at specific intervals
- Data log collects and date/time stamps up to 5000 measurement sets with optional sample ID and user ID
- Calibration log stores 10 most recent calibrations
- Non-volatile meter memory ensures your data and settings are protected, even with loss of power
- Orion Star Com software facilitates data transfer to a computer via USB or RS232 connections
- Flexible power options with AA batteries or optional universal power adapter
- IP67-rated housing is waterproof for rugged field operation
Included:
- Orion STAR A325 pH/conductivity portable meter
- 91-2661-53 (8107UWMMD) Orion ROSS Triode pH/ATC gel-filled electrode with 3 m cable
- 91-2661-49 (013010MD) Orion DuraProbe conductivity cell with 3 m cable
- 21-2112-04 (910410) pH 4.01 buffer pouches, pack of 10
- 21-2112-07 (910710) pH 7.00 buffer pouches, pack of 10
- 21-2112-10 (911010) pH 10.01 buffer pouches, pack of 10
- 17-7109-06 (01100710) conductivity standard pouches, 1413 µS
- 21-2112-21 (911110) rinse solution, pack of 10
- 91-2639-63 (STARA-AR) Protective armor with electrode holder, adjustable wrist/belt strap and built-in stand
- 91-2639-60 Hard carrying case
- 4 x AA batteries
Specifications:
| Accuracy (Conductivity) | 0.5% of reading ±1 digit > 3 μS; 0.5% of reading ±0.01 μS ≤ 3 μS |
| Accuracy (mV) | ±0.2 mV or ±0.05% of reading whichever is greater |
| Accuracy (pH) | ±0.002 |
| Accuracy (Resistivity) | 0.5% of reading ±1 digit |
| Accuracy (Salinity) | 0.5% of reading ±1 digit |
| Accuracy (TDS) | 0.5% of reading ±1 digit |
| Alarm Output | High/low limit alarm, calibration due alarm |
| Backlight Option | Yes, selectable |
| Battery Life | 800 hr. |
| Calibration | pH with calibration editing option, relative mV (RmV), ORP, conductivity with calibration editing op |
| Calibration Points | 1 point relative mV (RmV) mode, 1 point ORP mode |
| Calibration Points (Conductivity) | Up to 5 |
| Calibration Points (pH) | 1 to 5 |
| Cell Constant | 0.001 to 199.9 cm-1 |
| Data Management Details | Transfer single, range or all data points to printer or computer |
| Data Points | 5000 with date and time stamp |
| Channels | 2 |
| Display Type | LCD Graphic, Backlit |
| Resolution (pH) | 0.1/0.01/0.001 |
| Isopotential Point | 7.000 pH |
| Keypad | Comprehensive with menu-specific function keys and dual purpose scroll/shortcut keys |
| Languages | English, Spanish, French, Italian, German and Chinese; Portuguese and Korean available with software update |
| Log Function Type | Automatic data logging with Auto-Read and Timed measure modes; manual data logging with Continuous mode |
| Memory | Non-volatile memory preserves data log, calibration log and meter settings |
| Methods | 10 per channel with password protection |
| Resolution (Conductivity) | 0.001 μS minimum, auto ranging up to 4 significant digits |
| Resolution (mV) | 0.1 mV |
| Resolution (Resistivity) | 1 ohm or 0.1 meg-ohm, auto ranging |
| Resolution (Salinity) | 0.01 psu or 0.01 ppt minimum, auto ranging |
| Resolution (TDS) | 0.001 ppm minimum, auto ranging up to 4 significant digits |
| Salinity Measurement Modes | Practical salinity (psu) or natural sea water (ppt) |
| Stability | Selectable fast, medium, slow or Smart Stability setting; Selectable off or Automatic Smart averaging setting |
| TDS Factor Range | Linear (0.02 to 9.99) |
| Temperature Accuracy | ±0.1 °C |
| Temperature Compensation | Linear, nLFn (non-linear ultra pure water), nLFu (non-linear ultra pure degassed water), EP (off with warning) or off |
| Temperature (Metric) Reference | 5, 10, 15, 20, 25 °C |
| Temperature Probe Calibration | 1 point temperature offset calibration |
| Temperature Resolution | 0.1 °C / 0.1 °F |
| Temperature Selection | Manual or automatic with ATC temperature probe |
Specifications
| Power | 4 AA (included), Optional, Universal 50-60 Hz, 100-240 VAC power adapter |
|---|---|
| Manufacturer | Thermo Scientific Orion |
| Model No | STARA3255 |
